Default Windscreen frame questions

Click image for larger version

Name:	P2180742.jpg
Views:	22
Size:	43.2 KB
ID:	47327
I am a little disappointed with condition of the windscreen frame. There is substantial pitting inside the top cross rail. It won't be seen as far as I can tell, but I will have to replace the thin metal skin along the top. While at the blasters (primarily a heavy engineering works), I had them re-weld one of the vertical end pieces. Original welding had become cracked and it was nearing complete failure! N.B: In the above photo, I have allowed the panel to fall slightly forward of where it should be sitting, in order to take the photo.
Click image for larger version

Name:	P2180741.jpg
Views:	18
Size:	28.9 KB
ID:	47328

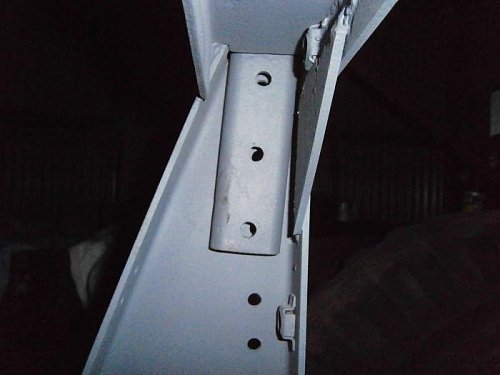

I did a trial fit to check alignment. everything aligns OK I guess, (at least at first testing) but I have an important question relating to final assembled position. In checking the total width of the two window frame openings, I have noted that the bottom would be approximately 3-4mm wider than measurement across the top. Both measurements taken from inner edge of the vertical end pieces that bolt onto the cab frame & door hinges.
Click image for larger version

Name:	P2180730.jpg
Views:	21
Size:	21.5 KB
ID:	47329 Click image for larger version

Name:	P2180731.jpg
Views:	20
Size:	22.5 KB
ID:	47330

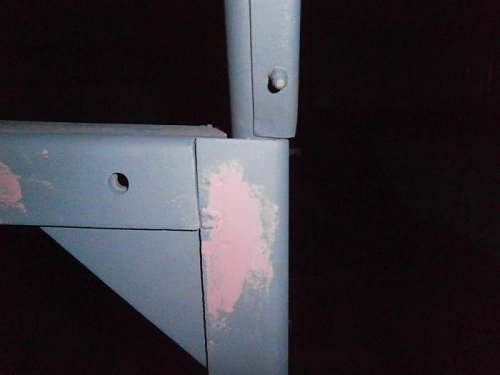

...Driver side........Mates side... (Both viewed from front of vehicle)

With reference to the two above photos, here is my question. When the vertical posts are bolted in final assembly position, should the windscreen frame posts sit flush with the alignment of the cab frame itself?

I.E: Are these posts simply bolted and pulled towards the door hinge side of the cab frame, which would leave them as they appear in the photos, or is there a spacer or packing of some kind to keep them aligned laterally flush with the cab itself????

If they are 'packed' slightly in a bit, to be flush along the vertical edge of cab frame, then measurements taken (left to right) across inner edges of the posts would then be correct and identical top to bottom. I have heaps of photos in my library, but can't find one which is good enough detail of that area for me to see properly!!!! I know this might have sounded like a daft question, but if there was a packing of 1-2mm each side, the window glass frames sit square in place. If no packing, they have a slightly wider gap at bottom. Rubber seal would cover it but doesn't look right.

HELP!!!!
