Rear tac sign holders, ? reproductions.

Dianaa · #1 22-03-13, 10:22

Has anyone made reproductions of the rear tac sign holders on International Mk3/Mk4 & F1 cargo bodied trucks?

I believe they are the same on the CMP?

The type that slides in from the side and has 3 recessed holes arranged in an inverted triangle.

Private_collector · #2 22-03-13, 11:09

Like these?

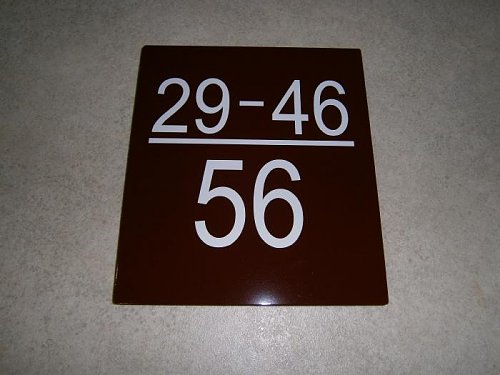

Click image for larger version

Name: Sign plate new 1.jpg
Views: 17
Size: 30.0 KB
ID: 55881

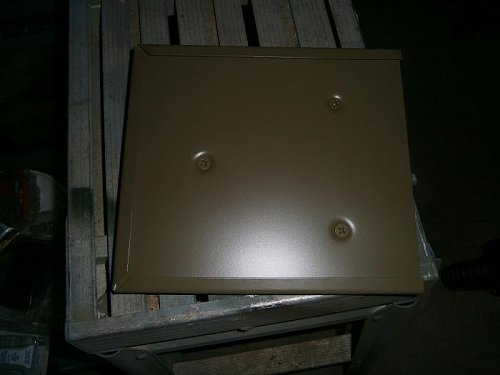

Click image for larger version

Name: TAC Plate - Unit side.jpg
Views: 15
Size: 39.3 KB
ID: 55883

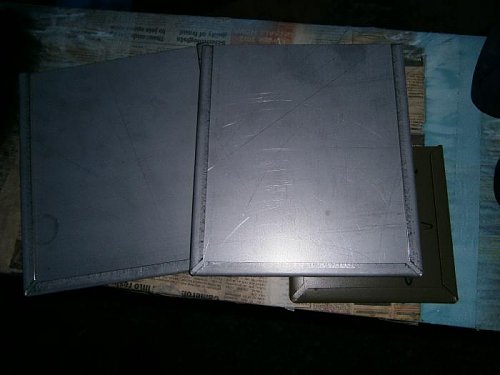

Click image for larger version

Name: Rear TAC plate frame.jpg
Views: 16
Size: 25.6 KB
ID: 55884

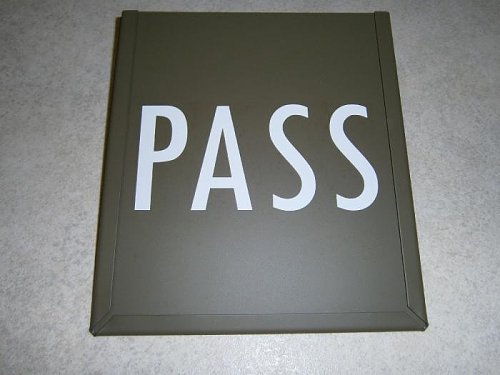

Click image for larger version

Name: TAC sign - Pass side, finished.jpg
Views: 14
Size: 34.0 KB
ID: 55886

I had these made locally. The measurements were provided from the relevent
Australian WWII Military beurocracy. They don't insert from the side, but top. Make sure you do your recesses REAL deep, so you don't foul the sliding of the plate. You probably already know that. The smaller plate you see in first photo is a more modern Australian one from a Land Rover, that I sent to the steel shop, so they knew how what I was wanting.

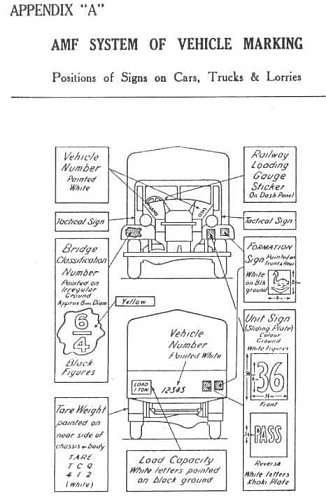

Click image for larger version

Name: appendix-a.jpg
Views: 15
Size: 37.0 KB
ID: 55885

Private_collector · #3 22-03-13, 11:36

Quote:

Originally Posted by Dianaa

If the WWII ones load from the top, they are not the same. (What happens when you drop the tailgate? I can imagine having to pick up the signs all the time

Very true! I hadn't given that scenario much thought. Mine will be going in a fixed position. One of the more learned MLU members will surely enlighten soon. Mine could be one variation, I guess. Maybe there is some method of locking them in place, in such a fitment??
