#1
20-05-16, 02:07
|
|||
|
|||

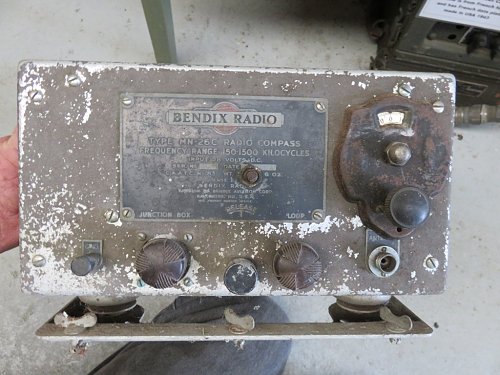

What do I have here? No.2.
A Radio Compass?? What is it and how does it work?

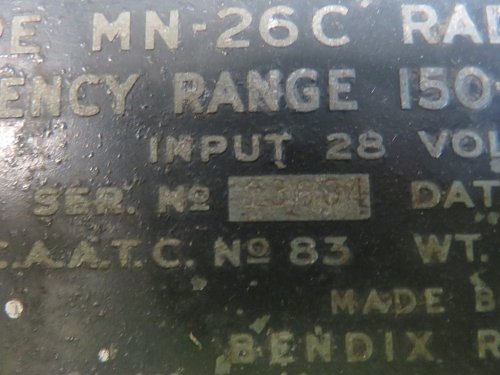

I think it is serial No. 13684 but may be 123684 as it is a bit rough. Regards Rick.
__________________
1916 Albion A10 1942 White Scoutcar 1940 Chev Staff Car 1940 F30S Cab11 1940 Chev WA LRDG "Te Hai" 1941 F60L Cab12 1943 Ford Lynx 1942 Bren Gun Carrier VR no.2250 Humber FV1601A Saracen Mk1(?) 25pdr. 1940 Weir No.266 25pdr. Australian Short No.185 (?) KVE Member.
|
|
#2
20-05-16, 08:21
|
|||
|
|||
|

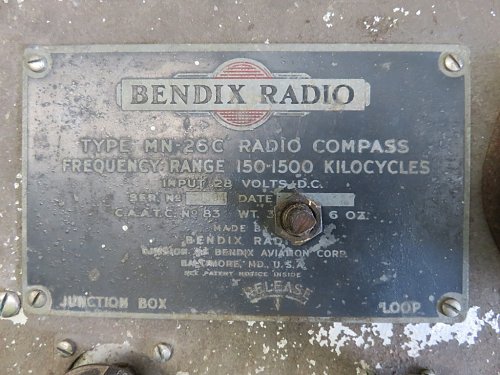

As it says, MN-26C radio compass. These were used aboard aircraft for radio direction finding and navigating. Operated in the broadcast band region.
Missing the control box, indicator & loop aerial.
|
|
#3
20-05-16, 10:35
|
||||
|
||||
|
compass
Rick
These were a major advancement when they first appeared as they were considered to be the most successful of their kind . From memory they had a sense function that enabled the user to work out which bearing was correct . Normally you got two bearings 180 degrees apart . bit of a write up http://vk2bv.org/archive/museum/mn26.htm
__________________
1940 cab 11 C8 1940 Morris-Commercial PU 1941 Morris-Commercial CS8 1940 Chev. 15cwt GS Van ( Aust.) 1942-45 Jeep salad Last edited by Mike K; 20-05-16 at 10:45.
|
 |
|
|
