#1
26-02-14, 13:30
|
||||
|
||||
Ideas Anyone?

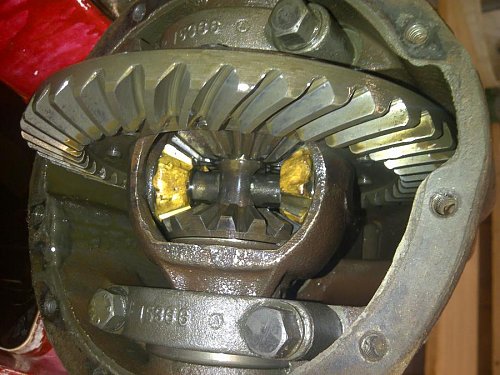

This axle is out of a post-war civvie jeep - essentially the same axle as an M-38. It had been hard used and Bubba'd into a plough. Rear diff posi-tracked with brass, front axle gutted of internals (but the drive shaft still in place...)

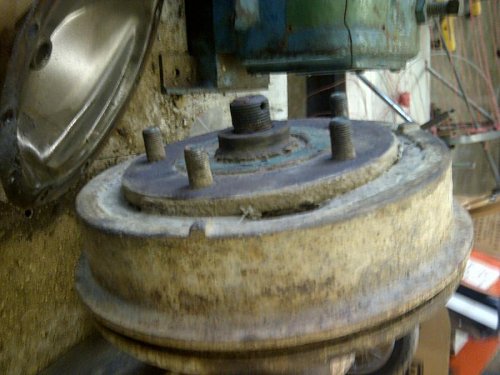

Why would someone put the flange on the outside of the drum?
__________________
Charles Fitton Maryhill On., Canada too many carriers too many rovers not enough time. (and now a BSA...) (and now a Triumph TRW...)
|
|
#2
26-02-14, 13:46
|
|||
|
|||
|
jeep axle
So are the wheel studs passing through the drum then into the flange??
|
|
#3
26-02-14, 13:49
|
||||
|
||||
|
...
Quote:
__________________
Charles Fitton Maryhill On., Canada too many carriers too many rovers not enough time. (and now a BSA...) (and now a Triumph TRW...)
|
|
#4
27-02-14, 01:46
|
||||
|
||||
|
Backspacing issue with whatever rims he was using? Maybe instead of making spacers for the rims to go over the studs he put the flange in front of the drums to create the space required. I suppose a fair amount of strength would be sacrificed on the axles as the engagement into the differential would be less. Best BS I can think of at the moment.
__________________
3RD Echelon Wksp 1968 M274A5 Mule Baifield USMC 1966 M274A2 Mule BMY USMC 1966 M274A2 Mule BMY USMC 1958 M274 Mule Willys US Army 1970 M38A1 CDN3 70-08715 1 CSR 1943 Converto Airborne Trailer 1983 M1009 CUCV 1957 Triumph TRW 500cc RT-524, PRC-77s, and trucks and stuff and more stuff and and....... OMVA, MVPA, G503, Steel Soldiers
|
|
#5
27-02-14, 01:52
|
|||
|
|||
|
I have noted that on CJs of the same model year as the M38, the drums are on the inside of the flange, and held fast by the pressed in studs.
To simply move an outer drum to an inner position would result in the drum binding on the back plate.
|
|
#6
27-02-14, 02:06
|
||||
|
||||
|
..
Quote:
__________________
Charles Fitton Maryhill On., Canada too many carriers too many rovers not enough time. (and now a BSA...) (and now a Triumph TRW...)
|
|
#7
11-03-14, 13:44
|
||||
|
||||
|
Absolutely correct, Rob.
[QUOTE=rob love;192274]I have noted that on CJs of the same model year as the M38, the drums are on the inside of the flange, and held fast by the pressed in studs.
__________________
Charles Fitton Maryhill On., Canada too many carriers too many rovers not enough time. (and now a BSA...) (and now a Triumph TRW...)
|
 |
|
|
