WS A Mk 3

[Tim Bell]

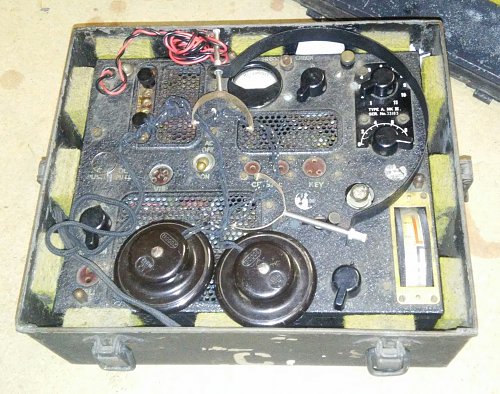

Wireless A Mk 3 - Normal

This is in Waterproof Container "C" and has the regular set up - with a Pull Switch allowing the operator to choose between a Battery Power source and Mains... and a Mains Plug board which allowed the operator to choose the input voltage.

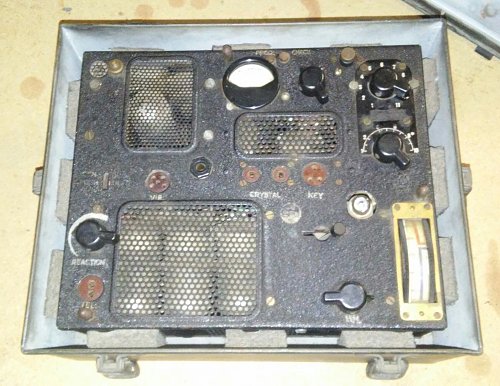

Wireless A Mk 3 - Modified

This is also in Waterproof Container "C", but has been modified (all modified parts are Australian - am assuming SOA use - confirmation required) - with a Pull switch which allows the operator to choose between a Battery Power source and Generator... So... No Mains input... presumably because Mains Power was not that common where the set was used.

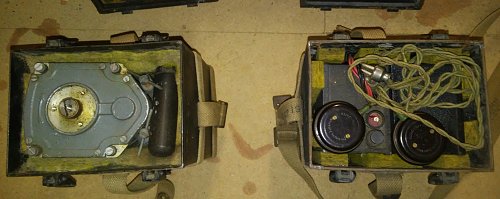

Wireless A Mk 3 - Hand Generator, 6v PSU and Spares

Waterproof containers:

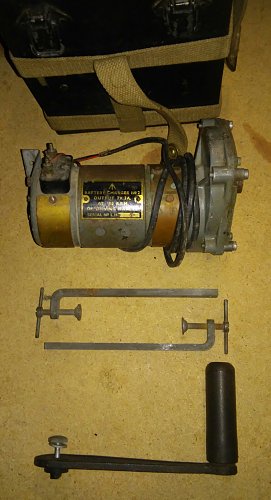

"F" - Hand Generator with table clamps (not exclusive to WS A Mk 3)

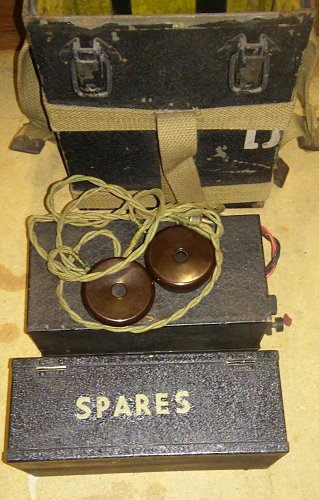

"D" - 6v PSU and Spares








Hope the above is of interest.

[Bob Carriere]

Attachments do not seem to work!!!!!

........ahah now I can see....said the blind man. Thanks

[Tim Bell]

Originally Posted by Bob Carriere

Attachments do not seem to work!!!!!

Oops... Will have another go!

Hope u can see them now?

[Bob Carriere]

Were they used by the spotters on isolated island reporting on Japanese shipping????

Intriging piece of history.

Cheers

[Bruce Parker (RIP)]

Originally Posted by Tim Bell

Wireless A Mk 3 - NormalHope the above is of interest.

"Hope the above is of interest" he says. Funny guy. Of course it's of interest!!! What a neat set. Should I make a place for it in my radio room or are you going to keep it?

[Mike Kelly]

Originally Posted by Bob Carriere

Were they used by the spotters on isolated island reporting on Japanese shipping????

Intriging piece of history.

Cheers

The coast watchers usually used the AWA 3B set . A whole team of native carriers was needed to move the 3B around, light it was not .

The Australian service roughly equivalent to the SOE was the Services Reconnaissance Dept. (SRD) These guys did the raid on Singapore harbour

[Tim Bell]

Originally Posted by Bruce Parker

"Hope the above is of interest" he says. Funny guy. Of course it's of interest!!! What a neat set. Should I make a place for it in my radio room or are you going to keep it?

Not for sale... Hence... Hope it is of interest.

Tim
