#31
16-02-13, 09:29
|
||||
|
||||
Hi Dave, Many thanks for taking the time to take the pictures, Rick DeBruyn is waiting for the snow to clear as he has the remains of one of the original wood tripod brackets he will measure up, I will post the details on here. What I really need is details now of the wood support for the base plate.
 kevin.
__________________
2pdr Tank Hunter Universal Carrier 1942 registered 11/11/2008. 3" Mortar Universal Carrier 1943 registered 06/06/2009. 1941 Standard Mk1 stowage Carrier, Caunter camo. 1941 Standard Mk1 stowage Carrier, light stone. 10 cwt wartime mortar trailer. 1943 Mk2 Daimler Dingo. 1943 Willys MB. 1936 Vickers MG carrier No1 Mk1 CMM 985.
|
|
#32
16-02-13, 09:49
|
|||
|
|||
|
Hi Euan, If thats how you see it.
Ours were built off Australian plans. Australia initially agreed to supply us with carriers, but when none were forthcoming, we built our own. Firstly the 40 riveted Brens, and then 560 LP2's.
__________________
Bluebell Carrier Armoured O.P. No1 Mk3 W. T84991 Carrier Bren No2.Mk.I. NewZealand Railways. NZR.6. Dodge WC55. 37mm Gun Motor Carriage M6 Jeep Mb #135668 So many questions....
|
|
#33
04-12-17, 17:27
|
||||
|
||||
|
Another pic
Thread bump
__________________
2pdr Tank Hunter Universal Carrier 1942 registered 11/11/2008. 3" Mortar Universal Carrier 1943 registered 06/06/2009. 1941 Standard Mk1 stowage Carrier, Caunter camo. 1941 Standard Mk1 stowage Carrier, light stone. 10 cwt wartime mortar trailer. 1943 Mk2 Daimler Dingo. 1943 Willys MB. 1936 Vickers MG carrier No1 Mk1 CMM 985.
|
|
#34
04-12-17, 18:55
|
|||
|
|||
|
So Kevin, have you worked out the straps over the barrel (tube)? As you have never posted saying so, here's the way I see it:
Each of the two straps start at the rear of the bracket. They are riveted around the inside of the brackets (going forward under the barrel. The free part of the strap goes over the barrel and is pulled down to clip onto the stud, securing the barrel into the brackets. Simple really. Does anyone have spares of the spring shown in Greg Anderson's posts #9 and #10?
__________________
Bluebell Carrier Armoured O.P. No1 Mk3 W. T84991 Carrier Bren No2.Mk.I. NewZealand Railways. NZR.6. Dodge WC55. 37mm Gun Motor Carriage M6 Jeep Mb #135668 So many questions....
|
|
#35
04-12-17, 23:51
|
||||
|
||||
|
No I haven’t, wish I could get hold of an original to reproduce with some accuracy.
__________________
2pdr Tank Hunter Universal Carrier 1942 registered 11/11/2008. 3" Mortar Universal Carrier 1943 registered 06/06/2009. 1941 Standard Mk1 stowage Carrier, Caunter camo. 1941 Standard Mk1 stowage Carrier, light stone. 10 cwt wartime mortar trailer. 1943 Mk2 Daimler Dingo. 1943 Willys MB. 1936 Vickers MG carrier No1 Mk1 CMM 985.
|
|
#36
10-12-17, 17:32
|
|||
|
|||
|
mortar brackets

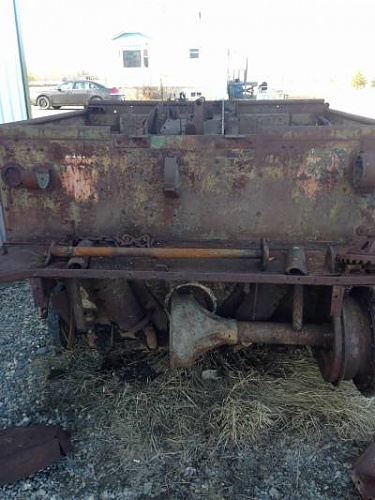

These are on a Mark II #2 that never left Canada and was used presumably for training as the brackets have been welded onto a welsh stowage carrier.
|
|
#37
10-12-17, 23:36
|
||||
|
||||
|
Hi, thanks for the pic, do you have a close up pic or anymore of the same carrier ?
Cheers
__________________
2pdr Tank Hunter Universal Carrier 1942 registered 11/11/2008. 3" Mortar Universal Carrier 1943 registered 06/06/2009. 1941 Standard Mk1 stowage Carrier, Caunter camo. 1941 Standard Mk1 stowage Carrier, light stone. 10 cwt wartime mortar trailer. 1943 Mk2 Daimler Dingo. 1943 Willys MB. 1936 Vickers MG carrier No1 Mk1 CMM 985.
|
|
#38
11-12-17, 10:01
|
||||
|
||||
|
Could be tempted to make my Mk2 into a mortar carrier. Want my carrier to have the Stacey bars on though.
__________________
is mos redintegro __5th Div___46th Div__ 1942 Ford Universal Carrier No.3 MkI* Lower Hull No. 10131 War Department CT54508 (SOLD) 1944 Ford Universal Carrier MkII* (under restoration). 1944 Morris C8 radio body (under restoration).
|
|
#39
09-02-20, 08:58
|
||||
|
||||
|
Australian Facebook
Spotted this on Australian cattier Facebook page.
__________________
2pdr Tank Hunter Universal Carrier 1942 registered 11/11/2008. 3" Mortar Universal Carrier 1943 registered 06/06/2009. 1941 Standard Mk1 stowage Carrier, Caunter camo. 1941 Standard Mk1 stowage Carrier, light stone. 10 cwt wartime mortar trailer. 1943 Mk2 Daimler Dingo. 1943 Willys MB. 1936 Vickers MG carrier No1 Mk1 CMM 985.
|
 |
|
|
