Ford junction blocks

[Keith Webb]

Can't remember if this has come up before but does anyone know of a source for these junction blocks for the lighting on a CMP? Or even for the components to make them?

Junction block.jpg

[Ian Mastin]

G'day Keith,

The WW2 jeeps have a 6 post junction block mounted on the fire wall on the right hand side behind the horn as you face the fire wall, they are not the same in looks but it may help you out if you not get original ones.


Regards
Ian

[Grant Bowker]

Do the terminal blocks sold by many Chev vendors (link provided for Chevs of the 40s) look right even though they only seem to be commonly in 3 or 4 terminal configurations? The vendors might be willing to provide their source to lead you to 6 terminal versions....
https://www.chevsofthe40s.com/shop/s...T&Seach=Search

Another search came up with a 5 terminal version at YnZ Yesterdays Parts http://www.ynzyesterdaysparts.com/in...ewCat&catId=26

The following doesn't go direct to suppliers but lists suppliers. My thought is that generic auto wiring suppliers might be more willing to share supplier/source info to help you track back to 6 terminal strips than those that sell prepackaged strips to fit a specific vehicle... (even if it is really a generic strip, repackaged).

[Richard Farrant]

Hi Keith,
As Ian has posted, the jeep had a 6 terminal junction, and Darcy Miller of MV Spares produces these, see link, they do not look too much different;
http://www.mvspares.com/catalog/popup_image.php?pID=51

[Tony Wheeler]

Cleverly obscured in Keith's photo is the central mounting screw, creating the illusion of a single 6-terminal strip! It's actually two separate 3-terminal strips with ends overlapping to share a common mounting screw.

Junction block (1).jpg

I've searched for these Ford parts in the past without luck, however the hole centres are standardized at 2 3/8", which means the 3-terminal Chev part could be used (after removing the metal end fittings)


and likewise the 6-terminal jeep type part, as reported by Tony Baker: Refer post #1032 here: http://www.mapleleafup.net/forums/sh...493#post177493.

Originally Posted by Private_collector

Junction block NOS.jpg
This NOS junction block is a perfect fit, despite being from another type of MV.

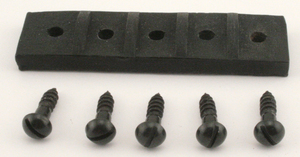

Of course, in terms of appearance, the modern repro parts differ considerably from the original Ford part, which used a hard rubber insulator strip. Something similar is available for T-Model Ford, so it may be possible to rebuild the Ford CMP part using these, along with terminals pried off the old part and cleaned of rust. That would be my own first preference, as I find the bright orange insulator with shiny zinc plated terminals completely alien to the period, let alone under a blitz bonnet. Yes they could be painted but they weren't painted ex-factory.

Snyder's Model T Ford.jpg

[Keith Webb]

Quite right Tony. I think I have a (sort of) answer as I have a few of the 1940 style resistor/cutout parts I can dismantle to salvage the black hard rubber bases to cut to make new ones using original metal parts. Only thing is they are slightly thicker than the originals.

[Tony Wheeler]

Originally Posted by Tony Wheeler

Something similar is available for T-Model Ford, so it may be possible to rebuild the Ford CMP part using these

Having checked the price on these at $20 each plus shipping it's hardly a solution. Ideally we need some hard rubber strip in the appropriate size, so we can churn these parts out dirt cheap. I'll check with a few industrial rubber supply joints when they reopen next week. I'm pretty sure they'll have something suitably hard in the correct thickness, even if only in sheet form, which we can cut to size. The original strip is invariably rock hard and crumbly after 70 years but it was obviously somewhat flexible when new, as evidenced by the outward bow when fitted. I believe this was intentional, to prevent possible inward deflection causing earthing on bodywork. In other words the hole centres were designed slightly overlength to create an outward bow. It's this kind of detail which makes the Chev part look completely wrong on a Ford.
