  #1
Old 21-06-10, 20:44
jaap de wit's Avatar
jaap de wit jaap de wit is offline
Registered User

Join Date: Jun 2009
Location: south part of holland
Posts: 163
Default dashlight on C15, cab 11 to

Quote:
Originally Posted by David DeWeese View Post
Thanks a million, Alex!
A picture is truly worth a thousand words! Thanks everyone for all your help.
The little light goes back on....
Thanks, David
he david this is a bit late maybe but when I read this thread again, I notished that my C15, cab 11 has a whole for the light aswell so it is not only for a C8 i think. just want to let you know.
cheers jaap
Attached Images
File Type: jpg lampje dashbord.jpg (30.2 KB, 35 views)
__________________
1940 chev C15 cab11, MCC wirelessbody No1 MK3.

Reply With Quote
  #2
Old 07-07-10, 03:49
David DeWeese David DeWeese is offline
Registered User

Join Date: Sep 2005
Location: Plano, Texas
Posts: 357
Default

Thanks very much for the photo, Jaap!
Been out of pocket for the last few weeks on a vacation with my daughter in Colorado. After the family fun was over, it was time for me to have a little fun of my own...
Still lots of old iron to be found.
Am trying to locate the owner of this very nice GP Jeep in New Mexico. It was for sale, but the sign had rotted off the windshield and the phone number was unreadable.
The AFKX 352 I have known about in Wyoming for a few years now, but it was a little pricey, and would take a low-boy equipment trailer to move legally, so I decided to pass it on to a man with the money to do it up correctly. Found it's sister in an old scrap yard the next day. They were both apparently used as rural school buses in the area years ago. I have a friend trying to deal with the eldery lady who owns the yard, so we'll see what happens.
Picked up this very straight 1.5 ton ex USAF Chev, but had to leave it in Nebraska. Will probably go back for it later in the summer.
Also found this modified T-16 and several half tracks in Nebraska, so will try and find out more information on these when I return to the area.
Thanks, David
Attached Images
File Type: jpg DSCF0790.jpg (89.0 KB, 59 views)
File Type: jpg DSCF0845.jpg (55.1 KB, 62 views)
File Type: jpg DSCF0868.jpg (60.2 KB, 63 views)
File Type: jpg DSCF0870.jpg (96.0 KB, 80 views)
File Type: jpg DSCF0872.jpg (81.9 KB, 66 views)

Last edited by David DeWeese; 27-03-11 at 15:31.
Reply With Quote
  #3
Old 11-07-10, 17:26
David DeWeese David DeWeese is offline
Registered User

Join Date: Sep 2005
Location: Plano, Texas
Posts: 357
Default little details...

Hi,
Received a set of nice toggle switch plates and a dash jewel for the C8 from Brian Asbury, (thanks again, Brian), and found a set of suitable ball-end toggle switches from the local hardware store.
After looking through some cab 11 dash photos, I have a question about the order of the switches. I placed them as "instrument", "tail" and "stop", but would that be the correct order for a cab 11?
Thanks, David
Attached Images
File Type: jpg DSCF0873.JPG (117.5 KB, 47 views)
File Type: jpg DSCF0881.JPG (115.3 KB, 36 views)
File Type: jpg DSCF0874.JPG (116.2 KB, 43 views)
Reply With Quote
  #4
Old 13-07-10, 02:18
Bob Carriere Bob Carriere is offline
Moderator

Join Date: Mar 2003
Location: Hammond, Ontario
Posts: 5,259
Default Here is what I have in my photo archives

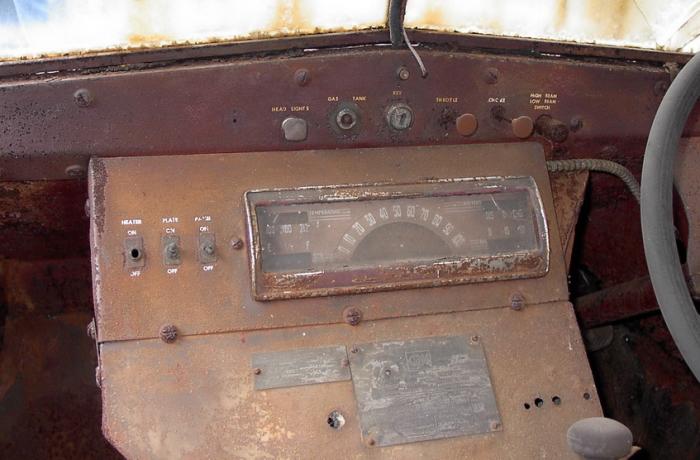

...picture taken at Coe Hill in 2005...... although truck had termianl cancer the interior still showed a good instrument/switch layout..... now this is a C8 and maybe different for a C15a.....
Attached Images
File Type: jpg IM003133switch platesresized.jpg (45.8 KB, 35 views)
__________________
Bob Carriere....B.T.B
C15a Cab 11
Hammond, Ontario
Canada
Reply With Quote
  #5
Old 13-07-10, 02:35
Bob Carriere Bob Carriere is offline
Moderator

Join Date: Mar 2003
Location: Hammond, Ontario
Posts: 5,259
Default Another version....

...so which one to believe....

This one is from my own cab11 C15a.....

First is STOP..... second is TAIL... and the 3rd one is a double sided swithc with a neutral in the middle labelled INST........
Attached Images
File Type: jpg IM001430switchescab11C15aresized.jpg (43.6 KB, 28 views)
__________________
Bob Carriere....B.T.B
C15a Cab 11
Hammond, Ontario
Canada
Reply With Quote
  #6
Old 14-07-10, 02:44
David DeWeese David DeWeese is offline
Registered User

Join Date: Sep 2005
Location: Plano, Texas
Posts: 357
Default

Thanks a lot Bob for the photos!
I'm going to go with the switch order on your truck in the second photo as it looks to be unmolested. Wonder why the three position switch on the instrument lights?
Someone spent a lot of time and effort labeling all the controls in the first photo. Enlarged the photo a bit and it looked like the first toggle switch was labelled "heater"? Couldn't make out the others.
Thanks again, David
