MV Tooth Extraction, at Weare Rally - Transmission Problems

[lssah2025]

No everything else looked pretty good might have had some water in the case over the years had some pitting but all the bearings, seals and gaskets were replaced so she purrs now, the throw out bearing was also replaced so the entire drive line, electrical, mechanical and pretty much front to back was restored and replaced.

[Phil Waterman]

Hi All

Bob, I can't afford $105 per hour rate that's why I work so fast. Plus over the years I've worked out a couple of tricks for removing and installing the transmission. Biggest trick is this one a slide rail that goes between the windshield frame member to the back of the cab with a chain fall to lower and raise the transmission. (Picture shows it in use on the HUP) This same slide rail is also useful when installing the engine and transmission to support the rear of engine as you slide it in.

I'm starting my parts hunt today so Ill let you know how I make out.

The picture below is one that the guys in the club took of the process of pumping 3 quarts of lube back into the transmission, it takes 175 pumps per quart. Yes, I get kidded about the surplus Red Cross lab coat and rubber gloves.



Link to 2013 Weare Rally Photos and video http://s1348.photobucket.com/user/Wi...?sort=3&page=1


http://www.youtube.com/watch?v=26CLeqxabig


Cheers Phi

[Bob Carriere]

....don't you have a show on TV????

Bob

[Phil Waterman]

Hi All

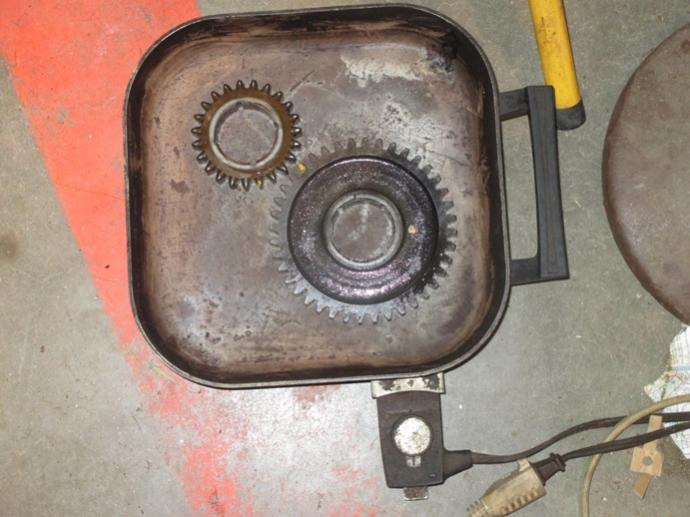

Progress report, I've got the gear box all apart and everything else looks good. On the parts hunt so far I have found a source of multiple 3rd gears NOS $60 each which could be put on to the old lower cluster it would require press the unit apart and pressing the new gear on. In talking with that source they may have an NOS transmission the whole thing $1200 they are checking to see if they still have it. From another source I found two used transmissions that look fair to good $125 each.

The NOS transmission if it is really available I think is my preference though I will buy a replacement gear for the original box anyway so that it is a complete ready to use unit. With three trucks all sharing the same box having a spare would mean I probably will never have transmission problems again.

Once as this thread has turned out to be more about the transmission and less about the Rally, once I can figure out how to do it I'll move the thread over to the Restoration heading.

Cheers Phil

[lssah2025]

Always good to have spares, one box for three, sounds like the way to go!!

[Grant Bowker]

The original scale of spares lists transmissions at 4 per 100 vehicles per 12 months so on first glance the plan of 1 spare for 3 trucks seems a bit cautious. On the other hand, what good is less than a complete transmission if the plan is to be able to replace the assembly?
Another way to look at is that you are going to hold an 8 year stock (if my math is good) on a scale designed for service driving, use and abuse....... and much longer on your kinder driving, lower mileage and better maintainance program. You should be good for life.

[Lynn Eades]

Grant, Phil is scaling, based on a 25 year projection.
