Canadian 10cwt Trailer rebuild

[Jordan Baker]

I took advantage of the great weather yesterday and somewhat today to paint the parts in POR15. After this I will start priming them and then painting them in the final colour of Khaki Green #3. I originaly was going to paint the trailer in SCC2 but I found KG#3 on most of the parts when I pulled them apart.

[Jordan Baker]

Ive also found some interesting differing features on these trailers from the information in the manuals.

In both SB-8 and SB-8A the body description has the fender brackets being riveted to the fender and bolted to the body. However in the Box Opening and Chassis/Body Assembling instruction it mentions using 26 3/8-24 x 3/4 hex head bolts to mount the fender brackets to the fenders and the body. The pictures in the manual show rivets whereas my trailer has bolts.

Another difference is a change of master cylinder. SB-8 in the parts listing has a part # of 91A-2140. This is a master cylinder with a 1-1/6" bore for a Ford 1/2 ton pickup. Whereas my trailer has the larger cylinder with a 1-1/4" bore for a Ford 1-2 ton truck. Looking over the picturs in the manual you can make out a difference in the reservoir height between the 1/2 ton and 1-2 ton master cylinder. So obviously both were used but only the small is listed.

mastercylindersmall.JPG mastercylinderbig.JPG

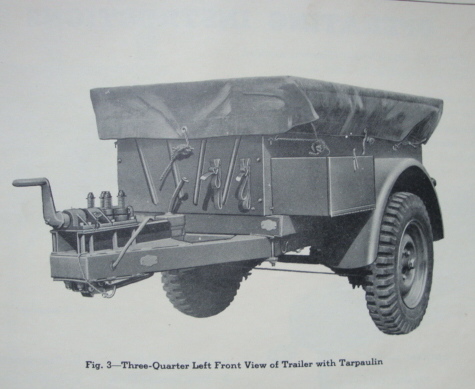

Lastly a bit of a mystery item that doesn't show up in the parts listing or the wiring diagram. An extra side mounted tail/stop light. This was in the SB-8A manual only.

tral light.JPG

[Jordan Baker]

Took advantage of the warmish weather yesterday and got a bunch of parts painted in KG#3. Ive also got my brake shoes back from being relined and can now assemble them.

[Jordan Baker]

I have finally finished all of the body work repairs. I ended up cutting out the old brazed repairs and welding in new sheet metal. For the brazed over holes I found it easiest to simply use a punch and hammer and knock them out. Next will be getting the frame and body panels all sandblasted. One thing I noticed is that one of my side panels is a thinner gauge sheet then the other.

[Bob Carriere]

.....becoming a dentist??????

[Jordan Baker]

Parts all came back from sandblasting earlier this week. Today was the first chance I have had to get them prepped and then painted with POR15. Hopefully will be spraying KG#3 on Monday and then parts can start going back on mid week. The chassis frame is a royal pain to move around without any wheels.

[Bob Carriere]

Really nice ground up resto.

What are you using on top of the POR the Tie coat or the self-hetch primer????

Cheers

[Luigi Divano]

Dear all,

I'd like to ask you some info concerning the Brake master cylinder: is there a master cylinder interchangeable with the original one (F/91A-2140) that could be bought in the after market / internet?

If yes, could you please provide me the brand and / or the part number?

thanks a lot for the help and kindness.

Kindest Regards

Luigi

Originally Posted by Jordan Baker

Ive also found some interesting differing features on these trailers from the information in the manuals.

In both SB-8 and SB-8A the body description has the fender brackets being riveted to the fender and bolted to the body. However in the Box Opening and Chassis/Body Assembling instruction it mentions using 26 3/8-24 x 3/4 hex head bolts to mount the fender brackets to the fenders and the body. The pictures in the manual show rivets whereas my trailer has bolts.

Another difference is a change of master cylinder. SB-8 in the parts listing has a part # of 91A-2140. This is a master cylinder with a 1-1/6" bore for a Ford 1/2 ton pickup. Whereas my trailer has the larger cylinder with a 1-1/4" bore for a Ford 1-2 ton truck. Looking over the picturs in the manual you can make out a difference in the reservoir height between the 1/2 ton and 1-2 ton master cylinder. So obviously both were used but only the small is listed.

Attachment 80443 Attachment 80444

Lastly a bit of a mystery item that doesn't show up in the parts listing or the wiring diagram. An extra side mounted tail/stop light. This was in the SB-8A manual only.

Attachment 80445

[rob love]

I believe that is the master cylinder still used today on some of the American designed 1.5 ton trailers.

They are available online under the part number you list: http://midfifty.com/item.php?INV_ID=9095

They are also listed at rock auto. Many different manufacturers for this cylinder, Raybestos MC1050 is one of the major manufacturers with a somewhat standard part number.

[Jordan Baker]

I went with this one from Macs Antique Auto

https://www.macsautoparts.com/early_...ton-truck.html


They also have this one.
https://www.macsautoparts.com/early_...kup-truck.html

[Tony Smith]

They are also available in a wide range of brands and prices on e-bay:

The 91A2140 1 1/16" MC is part number FD1050.

The 91T2140 1 1/4" MC is part number FD4570.

And just to confuse the issue, your 1/35 scale model doesn't look like either of these, it looks more like the 1" bore M/C: FE1476.

[Jordan Baker]

Haha thanks. I was waiting to be called out on that. It was actually a coil from a 1/35 Kublewagen engine.
