  #1
Old 01-11-18, 22:18
RichardT10829's Avatar
RichardT10829 RichardT10829 is offline
Richard Harrison

Join Date: Nov 2008
Location: Cullercoats Newcastle Upon Tyne United Kingdom
Posts: 3,068
Default

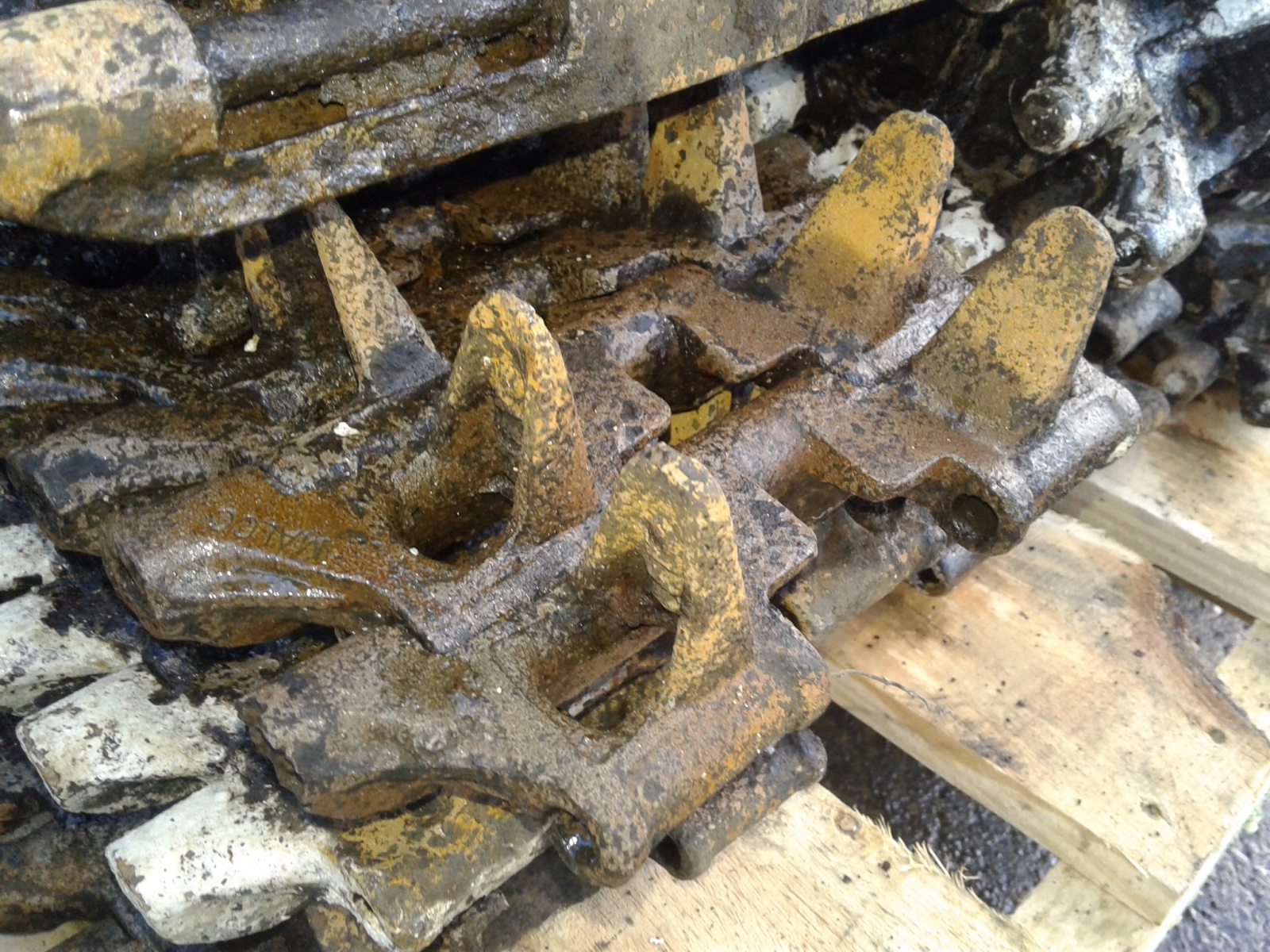

Also used molasses to do my tracks, you are best working the links back and forth whilst they are wet during the jet wash phase.

As for flash rust issues, I sprayed my track with POR metal ready, they didn't rust after that.


Left mine in fermented molasses for two weeks and they had been seized solid prior to that.
__________________
is mos redintegro

__5th Div___46th Div__
1942 Ford Universal Carrier No.3 MkI*
Lower Hull No. 10131
War Department CT54508 (SOLD)
1944 Ford Universal Carrier MkII* (under restoration).
1944 Morris C8 radio body (under restoration).

Last edited by RichardT10829; 10-11-18 at 14:09.
Reply With Quote
  #2
Old 02-11-18, 03:22
Robert Bergeron's Avatar
Robert Bergeron Robert Bergeron is offline
Registered User

Join Date: Nov 2012
Location: East Central Canada
Posts: 1,528
Default

Thanks Tony and Richard . Two weeks ? Now that’s fast ! I will let the whole thing rest for two weeks then i will give it an inspection . Thanks for the suggestions Richard. Rocking the pins & links to free them up is also a very good idea . My tracks are a barn find . All the links are present and there is barely any wear at all except for the fact that the pins and links are frozen . Someone at some point thought it was a good idea to put a torch to the track to free up one link on each track to take them off a Carrier instead of pulling a pin in the conventional way ! Very strange . Anyway , i look forward to the results of this experience . From what you are saying Richard it is a sure thing ! Thanks all. Keep you posted.
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 /
44 U.C. No-2 MKII* /
10 Cwt Cdn Brantford Coach & Body trailer /
94 LSVW / 84 Iltis

Last edited by Robert Bergeron; 04-11-18 at 01:59.
Reply With Quote
  #3
Old 02-11-18, 12:47
David Herbert David Herbert is offline
Registered User

Join Date: Mar 2010
Location: Ayrshire, Scotland - previously Suffolk
Posts: 563
Default

Quote:
Originally Posted by Robert Bergeron View Post
All the links are present and there is barely any wear at all except for the fact that the pins and links are frozen . Someone at some point thought it was a good idea to put a torch to the track to free up one link on each track to take them off a Carrier instead of pulling a pin in the conventional way ! !
Heating up track to free it makes it go very brittle and although ok for static exhibit it is VERY dangerous to run on it as it WILL break. The great thing with molasses is that as it is a very slow process it will get between the pins and links and eventually unfreeze them. If you speed things up by heating or electrolysis or a different bath, the easy to get at surfaces will be cleaned quicker but there will be little penetration between the links and the pins. That just needs time. If the track can be flexed a little it will aid penetration if it is moved occasionally but of course there is always one joint that won't move so that is the limit on how long it takes.

With regard to the flash rusting that happens as soon as you remove it from the molasses: If you acquire some of the chemical that is used for removing calcium deposits from inside milking machines you will find that that is quite concentrated phosphoric acid which is the ideal chemical for neutralizing the instant rusting that would otherwise occur. It creates a chemically stable surface from the unstable one left by the molasses. I should mention that this product is not supposed to be used by the general public as it must be treated with great care but if you know a friendly dairy farmer it is ideal. Phosphoric acid is the active ingredient in self etching primers like Bondaprimer and is also used by dentists to etch your teeth before filling a cavity !

David
Reply With Quote
  #4
Old 03-11-18, 04:56
Robert Bergeron's Avatar
Robert Bergeron Robert Bergeron is offline
Registered User

Join Date: Nov 2012
Location: East Central Canada
Posts: 1,528
Default Phosphoric acid

Thanks David for your post. I like the idea of using molasses even more now. I will let time do the work. As for phosphoric acid , i will pass . I really don’t mind rusted tracks. What i mind is pins frozen with links . I have to get rid of the stuff afterwards. So the way ahead i think in my particular situation is to throw away the molasses in a corner of my field when i am finished . Then i might do a POR -15 light spray in the tracks after using the pressure washer to clean everything up. I will bring the tracks back inside the warm hangar and start the a fan and dehumidifier to dry them up thouroughly . I was thinking of a very light coat of motor oil for preservation . When and if i use them i can always pressure wash the oil away. Thanks again David . Cheers .
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 /
44 U.C. No-2 MKII* /
10 Cwt Cdn Brantford Coach & Body trailer /
94 LSVW / 84 Iltis
Reply With Quote
  #5
Old 05-11-18, 03:36
Robert Bergeron's Avatar
Robert Bergeron Robert Bergeron is offline
Registered User

Join Date: Nov 2012
Location: East Central Canada
Posts: 1,528
Default MLUpdate- New news= molasses leak

Hi all.

I think that wiggling the tracks while they were in the bath was not such a great idea after all. ...

Well at least not if they are sitting on plastic 8 mm sheets....I am a little scared of what i will find in the hangar in the morning.
Attached Images
File Type: jpg molasses leak1.JPG (142.5 KB, 6 views)
File Type: jpg molasses leak 2.JPG (149.9 KB, 6 views)
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 /
44 U.C. No-2 MKII* /
10 Cwt Cdn Brantford Coach & Body trailer /
94 LSVW / 84 Iltis

Last edited by Robert Bergeron; 05-11-18 at 03:42.
Reply With Quote
  #6
Old 10-11-18, 20:00
maple_leaf_eh maple_leaf_eh is offline
Terry Warner

Join Date: Mar 2004
Location: Shouting at clouds
Posts: 3,152
Default

Quote:
Originally Posted by Robert Bergeron View Post
Hi all.

I think that wiggling the tracks while they were in the bath was not such a great idea after all. ...

....
You'll discover that molasses is very staining. Your shop floor will look pretty ghastly even after clean up. I've had to throw out towels, rags and clothes exposed to the stuff.
__________________
Terry Warner

- 74-????? M151A2
- 70-08876 M38A1
- 53-71233 M100CDN trailer

Beware! The Green Disease walks among us!
Reply With Quote
  #7
Old 05-11-18, 14:16
charlie fitton's Avatar
charlie fitton charlie fitton is offline
HLIofC - Normandy Pl

Join Date: Aug 2004
Location: Maryhill Ontario
Posts: 943
Default

...will bring the tracks back inside the warm hangar and start the a fan and dehumidifier to dry them up thouroughly ..

Might I suggest a steam pressure washer to clean them...heats them to dry faster when done...

no oil, holds the dirt like grinding paste.
__________________
Charles Fitton
Maryhill On.,
Canada

too many carriers
too many rovers
not enough time.
(and now a BSA...)
(and now a Triumph TRW...)
Reply With Quote
  #8
Old 05-11-18, 14:39
RichardT10829's Avatar
RichardT10829 RichardT10829 is offline
Richard Harrison

Join Date: Nov 2008
Location: Cullercoats Newcastle Upon Tyne United Kingdom
Posts: 3,068
Default

I used old bath tubs to soak my stuff, and a wheelie bin for other bits and bobs.

Not a fan of Phosphoric acid as it eats into the clean steel too... molasses through the process of chillation only eats the rust.
__________________
is mos redintegro

__5th Div___46th Div__
1942 Ford Universal Carrier No.3 MkI*
Lower Hull No. 10131
War Department CT54508 (SOLD)
1944 Ford Universal Carrier MkII* (under restoration).
1944 Morris C8 radio body (under restoration).
Reply With Quote
  #9
Old 05-11-18, 15:52
David Herbert David Herbert is offline
Registered User

Join Date: Mar 2010
Location: Ayrshire, Scotland - previously Suffolk
Posts: 563
Default

Richard,
I was not suggesting leaving parts in a bath of phosphoric acid. I was advocating that after removing de-rusted parts from a molasses bath, that they be washed off with lots of clean water and then rinsed in phosphoric acid (by immersion, spray or brushing) which will produce a chemically stable coating of ferrous phosphate and thus prevent the rusting that will occur very quickly if no anti rust treatment is applied. Phosphoric acid is the most common active ingredient in anti-rust and self etching primers for steel though I suspect Fertan contains tannic acid but I have never read up on it. I suggested the milking machine cleaning source of phosphoric acid because for those with friends in the dairy industry it is a way to cheaply acquire a decent quantity in a concentration way better than products like Jenolite that is sold to the public. Obviously precautions must be taken with both safety and disposal but this is not difficult.

David
Reply With Quote
  #10
Old 07-11-18, 05:17
maple_leaf_eh maple_leaf_eh is offline
Terry Warner

Join Date: Mar 2004
Location: Shouting at clouds
Posts: 3,152
Default

Quote:
Originally Posted by David Herbert View Post
....

If you acquire some of the chemical that is used for removing calcium deposits from inside milking machines ... but if you know a friendly dairy farmer it is ideal. ...
Quite fortuitously, Bob lives in a part of Quebec renowned for its dairy operations. And he is a personable chap, so I'm sure he can make friends with the farmers.
__________________
Terry Warner

- 74-????? M151A2
- 70-08876 M38A1
- 53-71233 M100CDN trailer

Beware! The Green Disease walks among us!
Reply With Quote
  #11
Old 09-11-18, 03:09
Robert Bergeron's Avatar
Robert Bergeron Robert Bergeron is offline
Registered User

Join Date: Nov 2012
Location: East Central Canada
Posts: 1,528
Default

Thanks for your good words Terry and your humour Charlie . Thanks for your advice David , Lynn and Richard . I feel lucky being accompanied on this project by advisers from all over the world ! I have covered the whole bath with a 8mm piece of plastic sheet so i don’t / can’t look at it every day. Next week i will pull the tracks out in the sunlight and give them a good spray with the pressure washer with water from the hot water heater. Then the flexing of the track. We shall see what happens next but i suspect they will go back in the bath for another while . I will report on the progress in one week and post pictures. Stay tuned . As for phosphoric acid .. i thought it was something they put in illumination shells , mortar bombs and grenades when they still could , not milking implements and holding tanks ...
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 /
44 U.C. No-2 MKII* /
10 Cwt Cdn Brantford Coach & Body trailer /
94 LSVW / 84 Iltis

Last edited by Robert Bergeron; 09-11-18 at 05:08.
Reply With Quote
  #12
Old 09-11-18, 08:59
charlie fitton's Avatar
charlie fitton charlie fitton is offline
HLIofC - Normandy Pl

Join Date: Aug 2004
Location: Maryhill Ontario
Posts: 943
Default

Phosphorus....for smoke shells

Magnesium.....for illumination
__________________
Charles Fitton
Maryhill On.,
Canada

too many carriers
too many rovers
not enough time.
(and now a BSA...)
(and now a Triumph TRW...)
Reply With Quote
  #13
Old 10-11-18, 01:01
Robert Bergeron's Avatar
Robert Bergeron Robert Bergeron is offline
Registered User

Join Date: Nov 2012
Location: East Central Canada
Posts: 1,528
Default

Hey Charlie, i never went much into details when i dealt with GOLF . When i wanted smoke GOLF sent smoke shot over and the world was full of chocking smoke . When i asked for illum , GOLF sent illum shot over and it lit up the night sky like it was day. Cheers. Bob
__________________
44 GPW / 44 C-15-A Cab 13 Wireless 5 with 2K1 box X 2 /
44 U.C. No-2 MKII* /
10 Cwt Cdn Brantford Coach & Body trailer /
94 LSVW / 84 Iltis
