#1
22-03-25, 20:31
|
|||
|
|||
Shifting into Reverse - GM Gear Shift Pattern
Question: What model GM CMP with a single speed transfer case would engage reverse gear by shifting to the right and down?
My reason for asking is seeing a 1942 GM gear shift instruction plate which indicates that - sorry, no picture available. Thanks in advance. Brian
__________________
1942 Willys MB Jeep 505 contract 1943 C8A HUP
|
|
#2
24-03-25, 14:32
|
||||
|
||||
|
The Otter did
__________________
Jordan Baker RHLI Museum, Otter LRC C15A-Wire3, 1944 Willys MB, 1942 10cwt Canadian trailer
|
|
#3
24-03-25, 14:52
|
|||
|
|||
|
Shift Pattern Plate
Thanks Jordan. Message sent.
Brian
__________________
1942 Willys MB Jeep 505 contract 1943 C8A HUP
|
|
#4
25-03-25, 11:32
|
||||
|
||||
|
Hi Brian,
...and the C15TA. If you have an original plate for sale, I would like to line up in the queue...
__________________
Regards, Hanno --------------------------
|
|
#5
26-03-25, 06:11
|
||||
|
||||
|
Hanno.

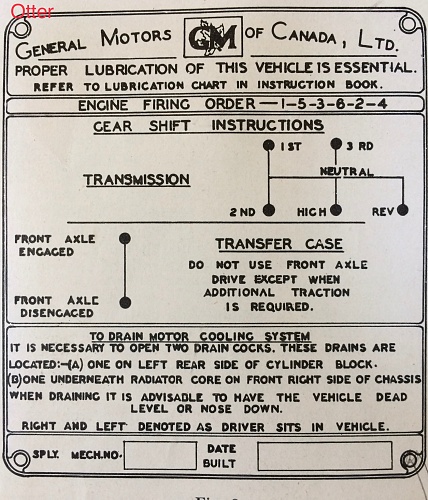

As always there is slight differences in the shifter plates. Both line drawings are from the maintenance manual.
__________________
Jordan Baker RHLI Museum, Otter LRC C15A-Wire3, 1944 Willys MB, 1942 10cwt Canadian trailer
|
|
#6
26-03-25, 11:05
|
||||
|
||||
|
Quote:
Doesn't the Otter have a high/ low transfer case?
__________________
Regards, Hanno --------------------------
|
|
#7
26-03-25, 14:00
|
||||
|
||||
|
Hi Hanno
No it used the same as the C15A
__________________
Jordan Baker RHLI Museum, Otter LRC C15A-Wire3, 1944 Willys MB, 1942 10cwt Canadian trailer
|
|
#8
27-03-25, 10:25
|
||||
|
||||
|
Quote:
__________________
Regards, Hanno --------------------------
|
|
#9
27-03-25, 18:33
|
||||
|
||||
|
No the first drawing is for the Otter.
This is what an original Otter plate looks like. Not mine
__________________
Jordan Baker RHLI Museum, Otter LRC C15A-Wire3, 1944 Willys MB, 1942 10cwt Canadian trailer
|
 |
