What on Earth?
Well Gentleman... this is a strange animal to me, however I have no doubt the members on this forum will solve the mystery of what this is.
I have never seen a more overly complicated diff construction. What the blazes is this thing?
__________________
Pax Vobiscum.......may you eat three meals a day & have regular bowel movements.
|
|
#2
28-10-17, 23:12
|
||||
|
||||
|
A few more
We are sure its not a farmers mod. Its put together as if it was factory.

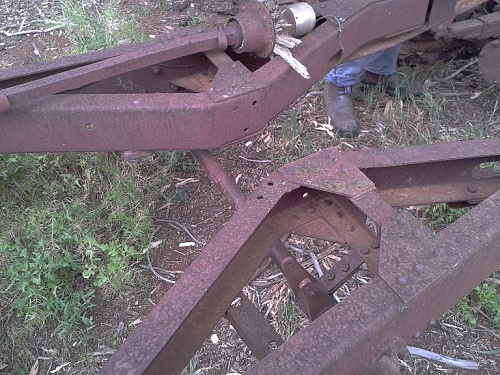

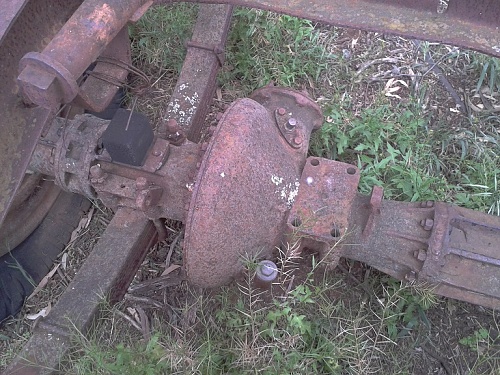

Experimental perhaps? Chassis construction in the middle is worth noting. Stainless steel welding rods have been used on the front. Not something a farmer would do. Mechanical brakes (Cable), Blitz 20 inch rims.
__________________
Pax Vobiscum.......may you eat three meals a day & have regular bowel movements.
|
|
#3
28-10-17, 23:20
|
||||
|
||||
|
More

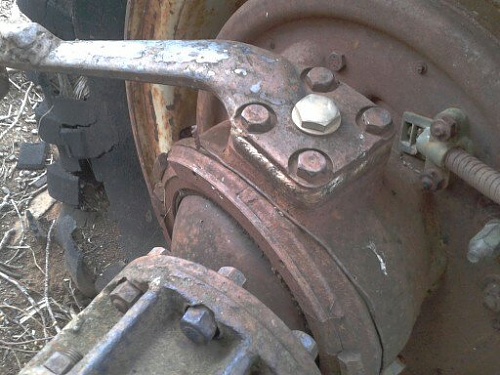

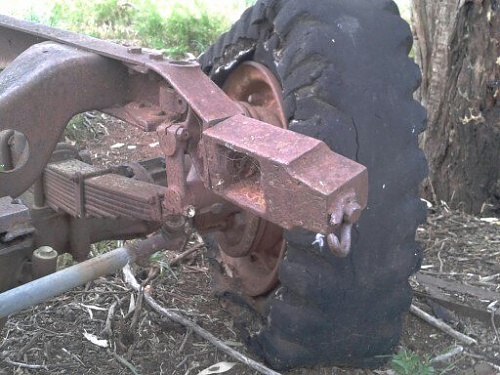

Note - it has been a bit stuffed around with. The drag link is not original.. having gal pipe welded into it

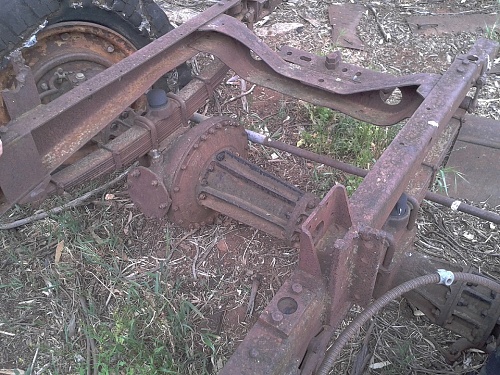

No stampings or badges (that we could see). Roughly same length as a short wheel base truck. forgot to take old sulky/wagon axle off chassis (Square rod sitting over the chassis) Very curious..have at it lads!!
__________________
Pax Vobiscum.......may you eat three meals a day & have regular bowel movements. Last edited by Ganmain Tony; 28-10-17 at 23:27. Reason: more dribble
|
|
#4
29-10-17, 00:20
|
|||
|
|||
|
Very interesting Tony, I don't know what it is either. Is it left or right hand drive? I almost suspect left, but the photos do not allow me to zoom in.
Why have they been uploaded in that fashion. Normally I just click on the and they come up in another screen which I can then click on again and manipulate. But not these photos. Anyway a great question to be answered as to the country, make and model. Regards Rick.
__________________
1916 Albion A10 1942 White Scoutcar 1940 Chev Staff Car 1940 F30S Cab11 1940 Chev WA LRDG "Te Hai" 1941 F60L Cab12 1943 Ford Lynx 1942 Bren Gun Carrier VR no.2250 Humber FV1601A Saracen Mk1(?) 25pdr. 1940 Weir No.266 25pdr. Australian Short No.185 (?) KVE Member.
|
|
#5
29-10-17, 00:29
|
||||
|
||||
|
suspected that
Apologies Rick Ill try another way to upload them.
__________________
Pax Vobiscum.......may you eat three meals a day & have regular bowel movements.
|
|
#6
29-10-17, 00:45
|
||||
|
||||
|
Ok

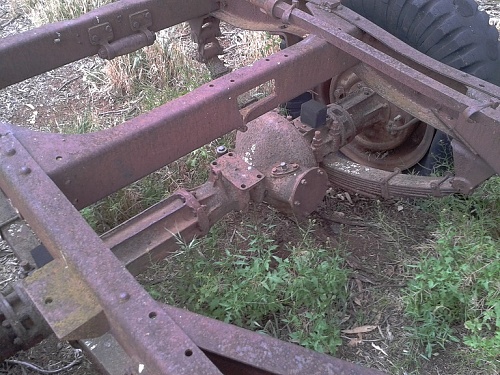

These might be better..
__________________
Pax Vobiscum.......may you eat three meals a day & have regular bowel movements.
|
|
#7
29-10-17, 00:49
|
||||
|
||||
|
Hi Tony,

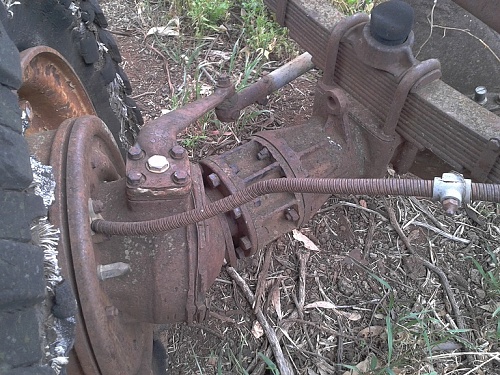

I have had a good look at the photos, the axles are not at all familiar, but I feel sure they are Girling brake backplates. Not seeing any hydraulics only cables, so assume mechanical brakes. The bracket for the steering box shows it as right hand drive. regards, Richard
__________________
Richard 1943 Bedford QLD lorry - 1941 BSA WM20 m/cycle - 1943 Daimler Scout Car Mk2 Member of MVT, IMPS, MVG of NSW, KVE and AMVCS KVE President & KVE News Editor
|
|
#8
29-10-17, 05:52
|
||||
|
||||
|
The chassis looks all the world to be a Guy Quad Ant.
The axles are indeed interesting, as with little experience with mecchano, the housings and halfshafts can be reconfigured to have the differential centred on the left or right of the chassis centreline. And although the differential pinions are missing (and spoil any grand plans), is that the speedo drive on the diff pinion housing, both F and R diffs? Break one, use the other? Last edited by Tony Smith; 29-10-17 at 06:24.
|
|
#10
29-10-17, 06:02
|
||||
|
||||
|
|
|
#11
29-10-17, 06:13
|
||||
|
||||
|
Quote:
__________________
Robert Pearce. Last edited by hrpearce; 29-10-17 at 07:00.
|
|
#12
29-10-17, 08:02
|
|||
|
|||
|
Or Tony, is it that the center housing is made to fit in the front or rear???
__________________
Bluebell Carrier Armoured O.P. No1 Mk3 W. T84991 Carrier Bren No2.Mk.I. NewZealand Railways. NZR.6. Dodge WC55. 37mm Gun Motor Carriage M6 Jeep Mb #135668 So many questions....
|
|
#13
29-10-17, 08:42
|
|||
|
|||
|
[QUOTE=Tony Smith;244046]The chassis looks all the world to be a Guy Quad Ant.
I agree with you Tony, a Guy Quad Ant. Well spotted. Regards Rick.
__________________
1916 Albion A10 1942 White Scoutcar 1940 Chev Staff Car 1940 F30S Cab11 1940 Chev WA LRDG "Te Hai" 1941 F60L Cab12 1943 Ford Lynx 1942 Bren Gun Carrier VR no.2250 Humber FV1601A Saracen Mk1(?) 25pdr. 1940 Weir No.266 25pdr. Australian Short No.185 (?) KVE Member.
|
|
#14
29-10-17, 10:44
|
||||
|
||||
|
Got it
Well done Graeme, Tony and Rick
Im convinced that it is a Guy Quad Ant. Certainly the axle end in your picture Graeme, and the footage Keith has done of Stylesey driving his. https://youtu.be/hMTFPB880dw Have look at the end of the footage, looking at the outside of the Quad and Im sure the axles are a match.
__________________
Pax Vobiscum.......may you eat three meals a day & have regular bowel movements. Last edited by Ganmain Tony; 29-10-17 at 11:09. Reason: you tube clip
|
|
#15
29-10-17, 12:24
|
||||
|
||||
|
Guy Quad Ant
Sorry to chime in so late but Tony was correct, Guy Quad Ant.
__________________
Film maker 42 FGT No8 (Aust) remains 42 FGT No9 (Aust) 42 F15 Keith Webb Macleod, Victoria Australia Also Canadian Military Pattern Vehicles group on Facebook https://www.facebook.com/groups/canadianmilitarypattern
|
 |
|
|
