#1
|
||||
|
||||
![]()
I decided it was about time for me to post my restoration. I purchased a C60L from Ryan on the 26 Jan, 2014

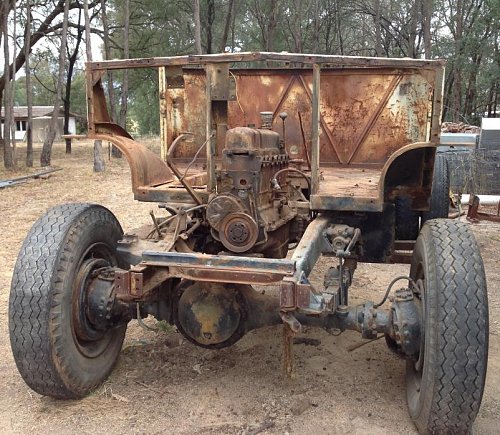

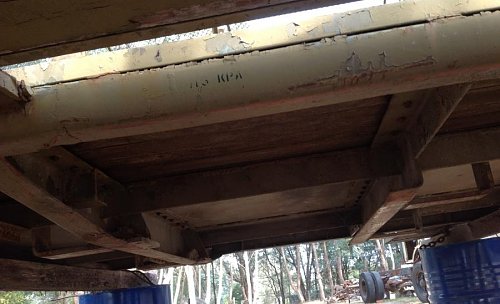

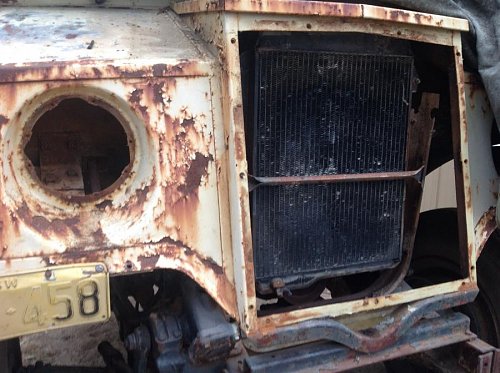

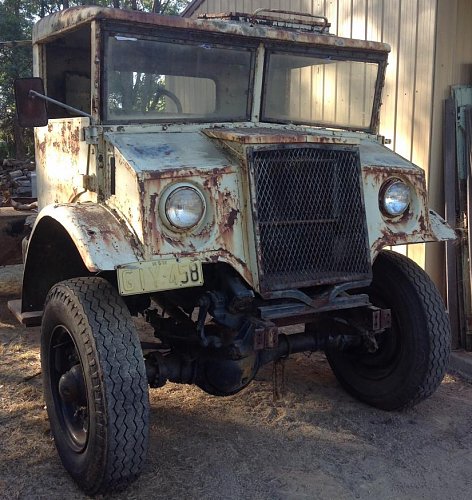

Leaving Ryan's Chassis model: 8443 Cab model: W048 - Supply Truck Date of Manufacture: 6 5 43 15509 miles on the clock On closer inspection the Cab had some deep rust spots but overall I was very happy with my purchase. The stripping down started immediately with my 15 year old son leading the way.
__________________
1942 Chevrolet C60L WO48 - (Workshop) 1944 F15A 1965 Workshop Platform Trailer, Binned ARN: 101-803 1967 Trailer, 1/2 ton AUST No 5 ARN: 154-748 1990 Perentie 6x6 ERV, ARN: 51-981 Last edited by Tony Mathers; 31-03-14 at 07:55. |
#2
|
||||
|
||||
![]()

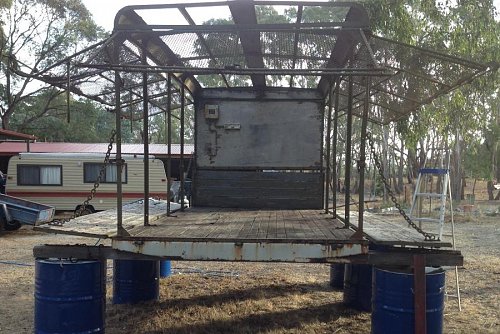

As the strip down continued I started finding and buying the parts I need to complete it. I also started doing lots and lots of research.

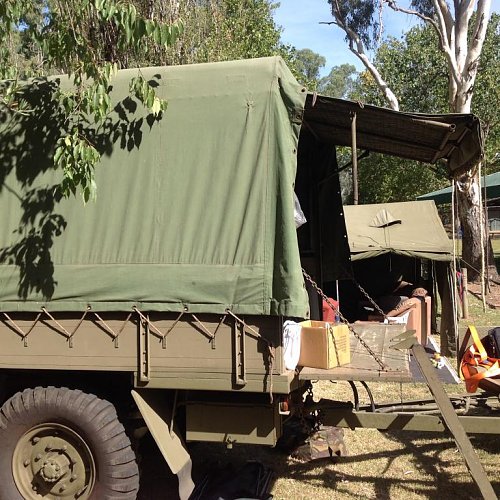

At Corowa I picked up the left hand side fuel tank, spring bumper and other assorted parts. I also took lots and lots of photos and measurements of Robs excellent C60L workshop. I was able to secure my own workshop body and picked it up the following week. This blitz workshop body had been refitted to fit the R.A.E.M.E.International Mk.5 Workshop Truck, but the changes are very obvious and I should be able to easily change it back.
__________________
1942 Chevrolet C60L WO48 - (Workshop) 1944 F15A 1965 Workshop Platform Trailer, Binned ARN: 101-803 1967 Trailer, 1/2 ton AUST No 5 ARN: 154-748 1990 Perentie 6x6 ERV, ARN: 51-981 Last edited by Tony Mathers; 31-03-14 at 09:18. |
#3
|
||||
|
||||
![]()

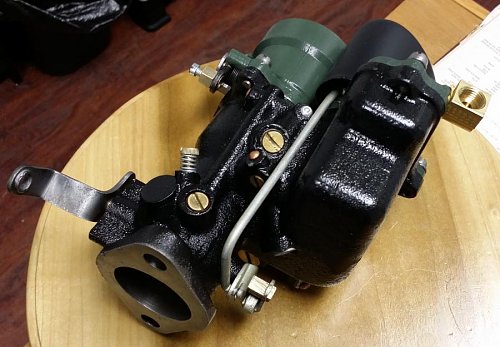

The first completed job is the Carbi restoration.
From this: To this Meanwhile the the strip down continues....
__________________
1942 Chevrolet C60L WO48 - (Workshop) 1944 F15A 1965 Workshop Platform Trailer, Binned ARN: 101-803 1967 Trailer, 1/2 ton AUST No 5 ARN: 154-748 1990 Perentie 6x6 ERV, ARN: 51-981 Last edited by Tony Mathers; 30-03-14 at 13:56. |
#4
|
||||
|
||||
![]()

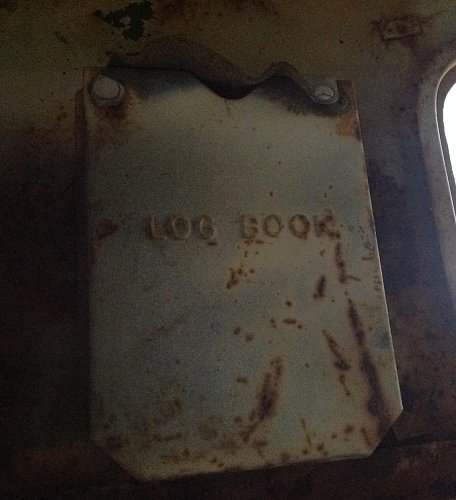

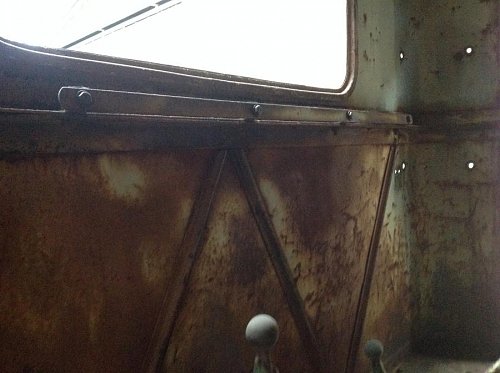

Lucky for me, this blitz still had some of the little things that I need.
I went to a auction last week and there was only one blitz item. But I forgot to tell the rest of the bidders what it was..... ![]() Alas I have a bar and bolt fitting and I now need hooks.
__________________
1942 Chevrolet C60L WO48 - (Workshop) 1944 F15A 1965 Workshop Platform Trailer, Binned ARN: 101-803 1967 Trailer, 1/2 ton AUST No 5 ARN: 154-748 1990 Perentie 6x6 ERV, ARN: 51-981 |
#5
|
||||
|
||||
![]()
__________________
One of the original Australian CMP hunters. |
#6
|
||||
|
||||
![]()

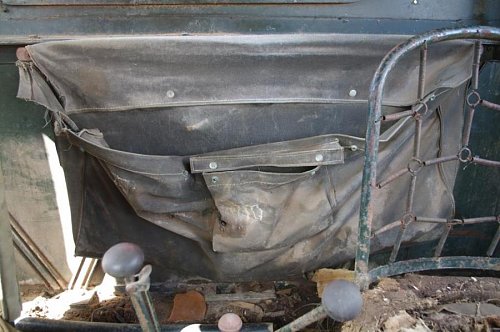

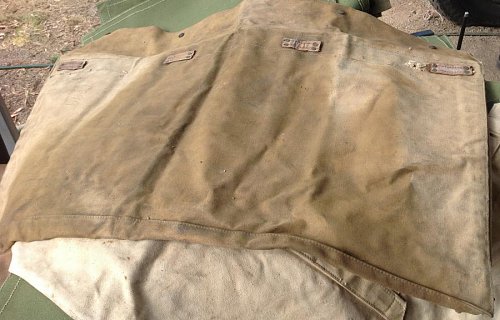

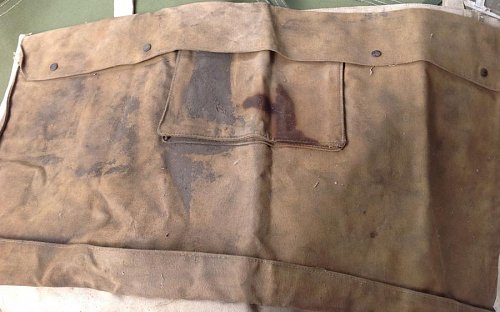

Tony, the bag is probably a little fragile to be making major alterations to it.
Last night I started stripping the hinges off the doors, and fixing them up. One of the hinges is broken, but I got the important bit from Ross Prince and now need to pull out the pin to fix it.... any suggestions on how this is done? Today was a rest day, so I sand blasted the steering wheel and gave the metal work a undercoat. Having lots of fun with this.
__________________
1942 Chevrolet C60L WO48 - (Workshop) 1944 F15A 1965 Workshop Platform Trailer, Binned ARN: 101-803 1967 Trailer, 1/2 ton AUST No 5 ARN: 154-748 1990 Perentie 6x6 ERV, ARN: 51-981 |
#7
|
||||
|
||||
![]()
No I've never tackled door hinge problems Tony, no doubt that pleasure awaits me.
__________________
One of the original Australian CMP hunters. |
#8
|
||||
|
||||
![]()
I drifted my pins out with a 1/4" high tensile bolt.
__________________
Robert Pearce. |
#9
|
||||
|
||||
![]()
I obviously wasn't hitting my brass punch hard enough....
__________________
1942 Chevrolet C60L WO48 - (Workshop) 1944 F15A 1965 Workshop Platform Trailer, Binned ARN: 101-803 1967 Trailer, 1/2 ton AUST No 5 ARN: 154-748 1990 Perentie 6x6 ERV, ARN: 51-981 |
#10
|
||||
|
||||
![]()
Kick arse Tony, good to see the cobwebs off it.
![]()
__________________
Blitz books. |
#11
|
||||
|
||||
![]()
I had a chest infection the last couple of weeks, which certainly slowed me down... But I did send the generator, regulator and starter motor off to the local auto elec for a service.. (whose uncle had a blitz)

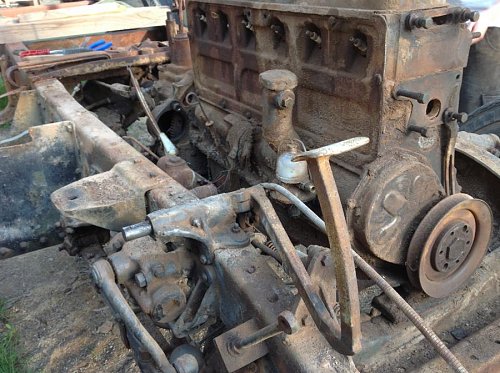

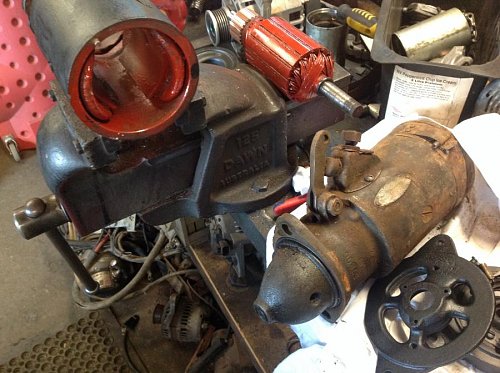

Here is a shot of the generator about to go back together and the starter motor waiting its turn. Today my son dragged me outside to work on the Truck and thanks to some helpful advice from Euan, I was able to finish getting the Cab off without further problems. Looks like the motor is next.
__________________
1942 Chevrolet C60L WO48 - (Workshop) 1944 F15A 1965 Workshop Platform Trailer, Binned ARN: 101-803 1967 Trailer, 1/2 ton AUST No 5 ARN: 154-748 1990 Perentie 6x6 ERV, ARN: 51-981 |
#12
|
||||
|
||||
![]()

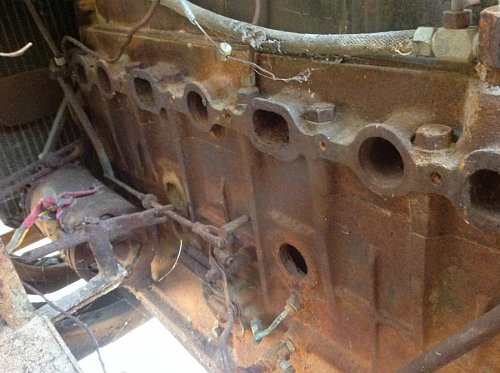

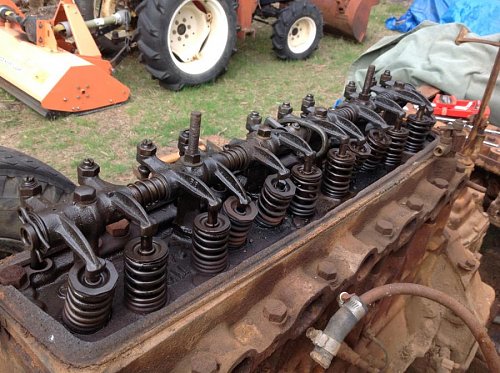

My son had a mate over today and they wouldn't leave my old truck alone... after removing the fuel pump, they decided to remove the rocker cover – then called me. I decided to keep going since they had started... looks like 2 broken rocker arms and a bent rod so far.

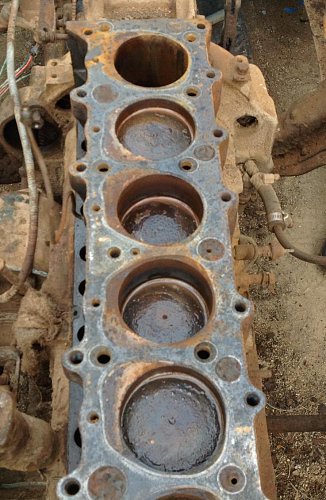

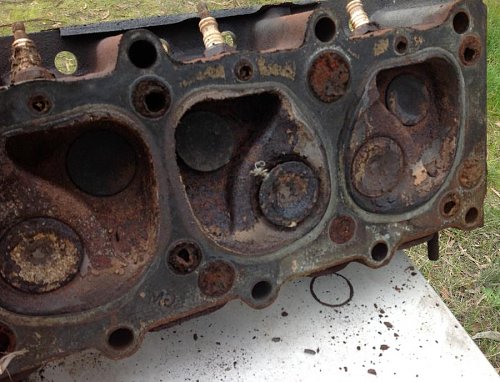

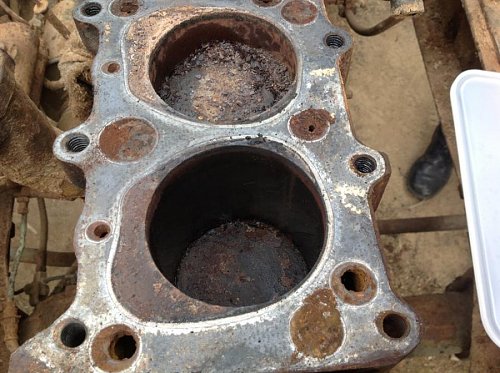

Since I am new to this pulling apart engine stuff, I was a bit horrified when I initially saw the pistons. But a lot of compressed air and WD40 seem to make a big difference. The 4 centre pistons now move freely but the end ones only have about 10mm of movement. (Is this a major problem?) We kept at it till dark and I am happy so far with the results. Does anyone know where to get rocker arms and rods? Do I just replace the broken ones or do I need more?
__________________
1942 Chevrolet C60L WO48 - (Workshop) 1944 F15A 1965 Workshop Platform Trailer, Binned ARN: 101-803 1967 Trailer, 1/2 ton AUST No 5 ARN: 154-748 1990 Perentie 6x6 ERV, ARN: 51-981 |
#13
|
|||
|
|||
![]()
Tony
Before ordering from overseas I would talk to Ross Prince of Hervey Bay. If you don't know of him already he specialises in spares for ex military vehicles mostly WW2 era. He knows blitzes better than any dealer except maybe Brian Asbury of Canada. Dave
__________________
Hell no! I'm not that old! |
#14
|
||||
|
||||
![]() Quote:
Quote:
I have a old friend (bush mechanic) who used to fix his dads blitz's, but unfortunately he is very unreliable, so he has only visited once... I am hoping he will return soon and do the actual rebuild. But I will need to have all the required parts ready, when he does. Dave I have Ross Prince's Chev catalog, but it also doesn't have rocker arms. But I will give him a ring during the week. Thanks gentlemen
__________________
1942 Chevrolet C60L WO48 - (Workshop) 1944 F15A 1965 Workshop Platform Trailer, Binned ARN: 101-803 1967 Trailer, 1/2 ton AUST No 5 ARN: 154-748 1990 Perentie 6x6 ERV, ARN: 51-981 |
#15
|
||||
|
||||
![]()
Hi tony,
I'm sure I would have a set or two. (don't send your money offshore) ![]()
__________________
Euan McDonald 4? C-GT (Aust) #8 44 C-GT (Aust) #9 42 Jeep, Trailer Aust 3 Welbike MK2 complete Welbike MK2 inconplete under resto C15A x3 C60S x1 ex ambo F60L x3 LP2a carrier SAR #4993. Trailer No27 Limber Trailer, Cario cargo Trailer, Pontoon semi Wiles Cooker 2 wheeled (jnr) |
#16
|
||||
|
||||
![]()
The last couple of weeks I have been modifying my shed to cope with all the new tools and the old parts coming off the truck and the new ones being purchased. While this has been fun, it has distracted me from actually working on the truck.
I took today off work to go for a job interview, after which I stopped and got a new air hose. On the way home I called into Simon Allen's. After catching up on the latest restorations he showed me a seat he had picked up for me. I had thought most of the blitz seats were the same, but compared to original seat this one is taller and wider in the back. Is it Ford seat? Simon had managed to get some work done on my fuel tanks, so that was good to see as well. When my son got home from school he dragged me out to remove the motor from the blitz. My small tractor made easy work of the motor and gearbox, but the lack of subtlety with the tractor's gearbox made me think the tie-down straps would tear. So we put it straight down on to my patented motor trolley (piano trolley and planks) and tried to move it inside. The wet ground made this a test of endurance, but we finally got it inside. The next job on the agenda is to build a engine stand that wont collapse or fall over.
__________________
1942 Chevrolet C60L WO48 - (Workshop) 1944 F15A 1965 Workshop Platform Trailer, Binned ARN: 101-803 1967 Trailer, 1/2 ton AUST No 5 ARN: 154-748 1990 Perentie 6x6 ERV, ARN: 51-981 |
#17
|
||||
|
||||
![]()
The wider seat is late production, no doubt due to complaints!
__________________
Film maker 42 FGT No8 (Aust) remains 42 FGT No9 (Aust) 42 F15 Keith Webb Macleod, Victoria Australia Also Canadian Military Pattern Vehicles group on Facebook https://www.facebook.com/groups/canadianmilitarypattern |
#18
|
||||
|
||||
![]()
Thanks Keith.
__________________
1942 Chevrolet C60L WO48 - (Workshop) 1944 F15A 1965 Workshop Platform Trailer, Binned ARN: 101-803 1967 Trailer, 1/2 ton AUST No 5 ARN: 154-748 1990 Perentie 6x6 ERV, ARN: 51-981 |
#19
|
||||
|
||||
![]()

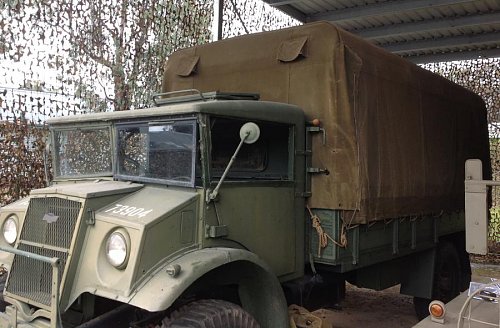

I visited the Army Museum Bandiana today to measure up and photograph the Blitz and Studebaker Workshop trucks. The very informative and helpful WO2 Ian Pullen was on duty and was able to show me around.

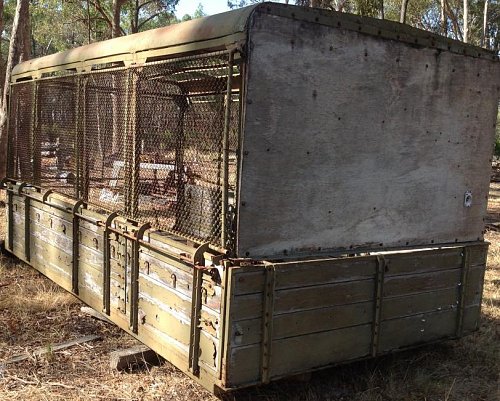

I was able to get lots of measurements and information on the little known parts and toolbox's on the workshop body. Including these bits: After that I visited Empire Trading & Disposals Company near Wangaratta and got some lovely new bits for my truck, including M113 lights for the taillights, a 1940 pick and a WWII Camouflage net to hide the truck from my wife.
__________________
1942 Chevrolet C60L WO48 - (Workshop) 1944 F15A 1965 Workshop Platform Trailer, Binned ARN: 101-803 1967 Trailer, 1/2 ton AUST No 5 ARN: 154-748 1990 Perentie 6x6 ERV, ARN: 51-981 |
#20
|
||||
|
||||
![]()

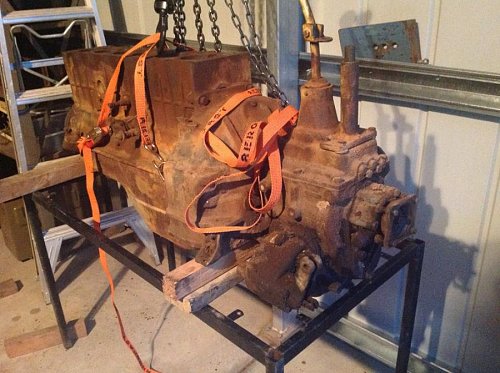

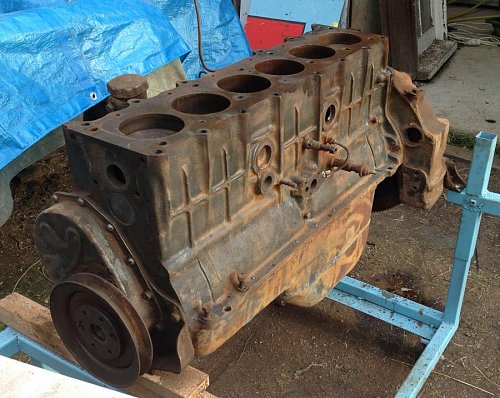

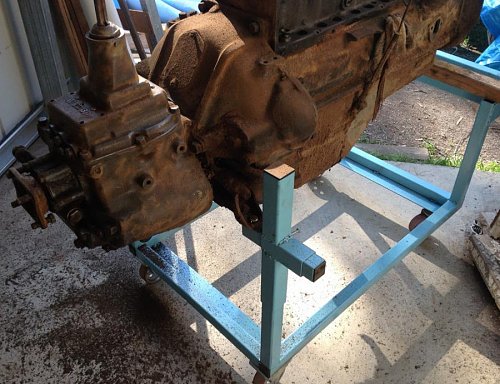

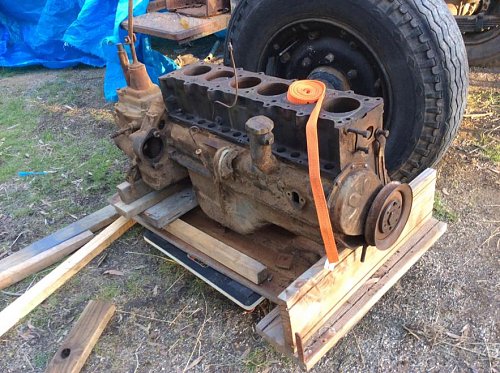

I just finished my Phil Waterman style engine stand this morning (Thanks for posting the design mate) and put it to the test straight away.
My son who happened to be home from school today woke up before Midday (I was stunned!) and decided it was a good time to start playing with my Truck.. (Its mine son, mine!) So we cleaned the crud off the gearbox and then tried to take it off, Boy was it on tight... so we kept going back to cleaning the engine. I rang Euan for some advice (Did I remember to say thanks?) Since we were positive it was the gearbox that was stopping the pistons moving we started pulling the gearbox apart where it was... Yuck was it a mess, it appears condensation or something had over a period of time filled the gearbox with water.. It was a great excuse to set up the molasses bin and after buying a 3/4 ring spanner and an extra half hour of toil the whole lot went for a swim in molasses. The best part is, the pistons and bearings appear to be in great shape. The head needs a lot of work, but appears to be fine as well. My son and I had so much fun we decided we should complete the engine rebuild ourselves. Thanks Euan and Phil for all your help.
__________________
1942 Chevrolet C60L WO48 - (Workshop) 1944 F15A 1965 Workshop Platform Trailer, Binned ARN: 101-803 1967 Trailer, 1/2 ton AUST No 5 ARN: 154-748 1990 Perentie 6x6 ERV, ARN: 51-981 |
#21
|
||||
|
||||
![]()
I have a spare Chev gearbox if you need... that one looks like it will sound like one of the ones in Tony Wheeler's collection...
__________________
Film maker 42 FGT No8 (Aust) remains 42 FGT No9 (Aust) 42 F15 Keith Webb Macleod, Victoria Australia Also Canadian Military Pattern Vehicles group on Facebook https://www.facebook.com/groups/canadianmilitarypattern |
#22
|
|||
|
|||
![]()
Hi Tony

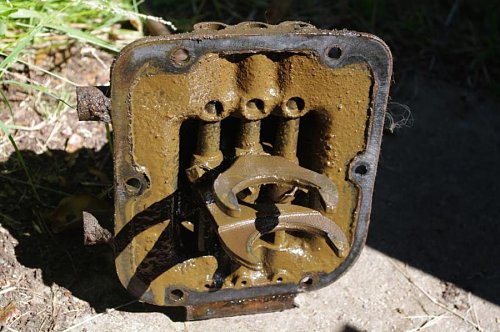

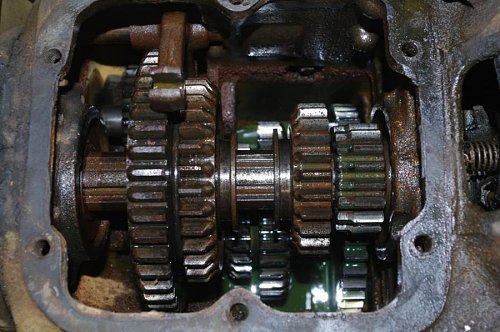

You may be surprised how well that transmission will clean up. I've seen worse that have cleaned up and worked for years. One of mine was like that it was half full of water when I got it. Completely disassembled and cleaned everything polished the gear teeth with the scotch disks, replaced the bearings drove it for a lot of years. Not the quietest transmission I've ever had but was worth it. Engine stand looks good. Keep us posted on your progress Cheers Phil
__________________
Phil Waterman `41 C60L Pattern 12 `42 C60S Radio Pattern 13 `45 HUP http://canadianmilitarypattern.com/ New e-mail Philip@canadianmilitarypattern.com |
#23
|
||||
|
||||
![]()
Thanks Gentlemen at this stage I will see how it cleans up, as most of the rust came off before I put the gearbox in the molasses.
__________________
1942 Chevrolet C60L WO48 - (Workshop) 1944 F15A 1965 Workshop Platform Trailer, Binned ARN: 101-803 1967 Trailer, 1/2 ton AUST No 5 ARN: 154-748 1990 Perentie 6x6 ERV, ARN: 51-981 |
#24
|
||||
|
||||
![]()
Tony
I will find some more pics ...........Mike BTW you should find a wartime MACSON lathe for your truck .. MACSON lathes were made by McPhersons in Melbourne , the large industrial hardware business
__________________
1940 cab 11 C8 1940 Morris-Commercial PU 1941 Morris-Commercial CS8 1940 Chev. 15cwt GS Van ( Aust.) 1942-45 Jeep salad |
#25
|
||||
|
||||
![]()

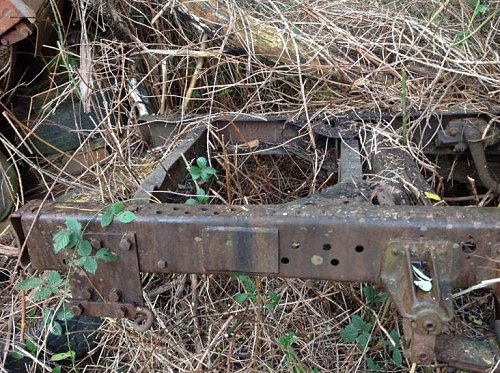

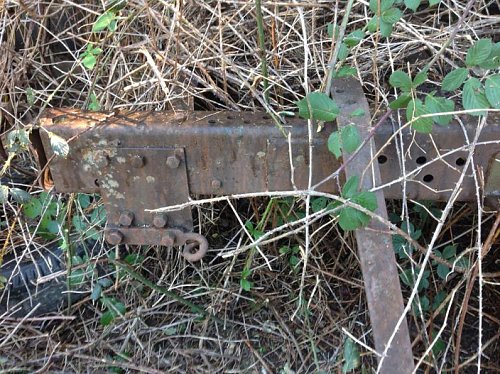

Today I went to a secret treasure trove, a wonderland of blitz heaven, armed with a machete and thick leather gloves, I hacked and slashed my way through miles and miles of blackberries until I was able to unearth several treasures.

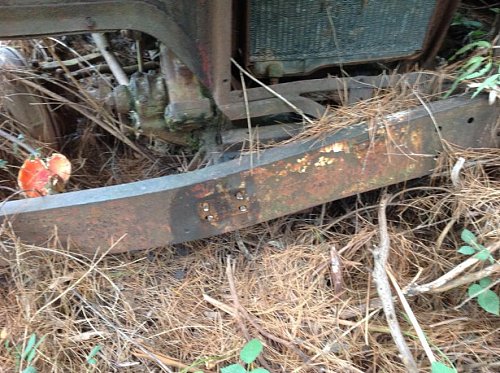

I needed a bumper, and I got this perfectly straight and only a little bit rustic marvel. I then proceeded to unearth another much needed missing piece, the last 800mm of the chassis. Unfortunately my generator let me down halfway through the job and I need to go back and finish cutting it off later. My brother came over tonight and has offered me his generator, so I will visiting him tomorrow. Yay!
__________________
1942 Chevrolet C60L WO48 - (Workshop) 1944 F15A 1965 Workshop Platform Trailer, Binned ARN: 101-803 1967 Trailer, 1/2 ton AUST No 5 ARN: 154-748 1990 Perentie 6x6 ERV, ARN: 51-981 |
#26
|
||||
|
||||
![]() Quote:
I don't suppose you have pictures of machinery A, B, C, E, F etc as well do you? Thanks and have fun...
__________________
1942 Chevrolet C60L WO48 - (Workshop) 1944 F15A 1965 Workshop Platform Trailer, Binned ARN: 101-803 1967 Trailer, 1/2 ton AUST No 5 ARN: 154-748 1990 Perentie 6x6 ERV, ARN: 51-981 |
#27
|
||||
|
||||
![]()
You may have these pics already ?
Seen on the RH end of the pic next to the lathe is a CAMEL BACK pedestal drill press
__________________
1940 cab 11 C8 1940 Morris-Commercial PU 1941 Morris-Commercial CS8 1940 Chev. 15cwt GS Van ( Aust.) 1942-45 Jeep salad |
#28
|
||||
|
||||
![]()
cab 12 Ford version
__________________
1940 cab 11 C8 1940 Morris-Commercial PU 1941 Morris-Commercial CS8 1940 Chev. 15cwt GS Van ( Aust.) 1942-45 Jeep salad |
#29
|
||||
|
||||
![]()
Not sure if these pics are of the 4 wheeled machinery trailer or the truck
The drill press is seen in pic 1 , in the foreground is a metal shaper BTW I dont know how they managed to machine anything accurately on a lathe mounted on a flimsy floor in a truck . Lathes are extremely sensitive to any deviation in uneven floors . Mike
__________________
1940 cab 11 C8 1940 Morris-Commercial PU 1941 Morris-Commercial CS8 1940 Chev. 15cwt GS Van ( Aust.) 1942-45 Jeep salad Last edited by Mike K; 17-05-14 at 12:20. |
#30
|
||||
|
||||
![]() Quote:
The main consideration of course is tooth end wear/damage through crunching the gears, which mainly effects 2nd and 3rd gears. This damage is self perpetuating, because once the rounded ends are flattened and splayed and chipped they're much harder to engage without crunching. Eventually this can lead to a tooth breaking off, or even several stripped teeth. When that happens you need a complete rebuild, as the bearings are likely to be damaged by case hardened fragments of steel floating around in the oil, and likewise the seals may be abraded. In fact there will always be loose steel floating around inside a crash gearbox, so it's worth making sure you have a magnetic drain plug. They often get lost over the years. As Phil says you can happily run a rusty gearbox provided the bearings are replaced. One of my Ford gearboxes was so rusted out it took me two days work with a crowbar and sledgehammer to get the gears and selectors moving again. It works fine now but makes a tremendous racket because the front bearing was completely rusted solid. It's OK in the back yard but would no doubt shatter if it were run at speed on the road for any length of time. The gearbox in my road blitz was also rusty, and I didn't even know at first, because the truck had supposedly been restored. All I did was check the oil level, never dreaming there'd be a litre of water underneath! It wasn't until I did a 200 km trip and lost reverse gear along the way that I realized there was anything untoward inside. What happened was the oil/water/rust powder emulsion whipped up inside while driving caused the oil to lose its lubricant properties, and the reverse selector fork started to bind on its shaft when pushed sideways by the gear lever. It took me a while to figure out, because it worked perfectly when pushed gently with a finger, but every time I put the lid back on it stopped working! Anyway it was easily fixed by flushing with petrol and refilling with clean oil. The bearings seem to be OK for the moment so I have no plans to change the gearbox.
__________________
One of the original Australian CMP hunters. |
![]() |
|
|
![]() |
||||
