Default FAT cab 13 front bumper cable rollers

Hi folks

My cab 13 FGT is missing the cable rollers on the front bumper.

All the cab 13 FATs I have found on web do have the late, big one.

But the FGT in MB - F2 is a cab 13 but has the early, small one, used on cab 11 and 12 models. (So does the cab 13 C60L in MB-C2 book)

The thing is - the only roller set I have found for sale (yet) is the small one, so I am thinking about putting it there - but my FGT seems to have the later - round instrument -dash board. So maybe it should have the later type or the rollers, shouldn't it?

Thank you for your opinions,

Frankie
Attached Thumbnails
FAT front roller.jpg   manual.jpg
Reply With Quote
  #2
Old 18-10-16, 15:41
Frantisek Nachlinger Frantisek Nachlinger is offline
Registered User

Join Date: Jun 2005
Location: Czech republic
Posts: 225
Default

Here is a Picture of my bumper. It does not seem there are holes for the bigger type...? I am not sure how is it fixed there.

It's missing the scotch hooks, too, doesn't anybody have few pics of them?

Thank you,

Frankie
Attached Thumbnails
my bumper.jpg
Reply With Quote
  #3
Old 18-10-16, 16:47
Niels V's Avatar
Niels V Niels V is offline
Niels Vegger

Join Date: Feb 2008
Location: Copenhagen, Denmark
Posts: 500
Default

Yours looks to have had the smaller type fitted, that uses the same holes as the D rings, though the bumper could have been switched at some point.
__________________
1941 Chevrolet, Cab 12 CGT, 7A2 body
1944 Ariel W/NG
1944 Scammell Pioneer SV/2S x 2
1955 Austin Champ, 04BF45

1946 Chevrolet 5400 COE, Civilian
Reply With Quote
  #4
Old 18-10-16, 17:15
Frantisek Nachlinger Frantisek Nachlinger is offline
Registered User

Join Date: Jun 2005
Location: Czech republic
Posts: 225
Default

Quote:
Originally Posted by Niels V View Post
Yours looks to have had the smaller type fitted, that uses the same holes as the D rings, though the bumper could have been switched at some point.
Thank you for your reply, Niels, i Thought so...
Could you please send me a picture of the "Scotch hooks" on your FAT?

Were they same on Chev and Ford? I do not think so... They look more "pig-tailed" on the Ford...
Attached Thumbnails
Scotch hooks.jpg

Last edited by Frantisek Nachlinger; 18-10-16 at 17:20.
Reply With Quote
  #5
Old 18-10-16, 22:41
Niels V's Avatar
Niels V Niels V is offline
Niels Vegger

Join Date: Feb 2008
Location: Copenhagen, Denmark
Posts: 500
Default

Oddly both of mine do not have any trace of scotch hooks on the front bumper
__________________
1941 Chevrolet, Cab 12 CGT, 7A2 body
1944 Ariel W/NG
1944 Scammell Pioneer SV/2S x 2
1955 Austin Champ, 04BF45

1946 Chevrolet 5400 COE, Civilian
Reply With Quote
  #6
Old 19-10-16, 20:58
Harlé Sylvain's Avatar
Harlé Sylvain Harlé Sylvain is offline
Registered User

Join Date: Aug 2015
Location: FRANCE
Posts: 254
Default

Hello
There is also no holes for the scotches hook on my FAT bumper


Cheers
Sylvain
Reply With Quote
  #7
Old 20-10-16, 02:23
Barry Churcher's Avatar
Barry Churcher Barry Churcher is offline
Junior Member

Join Date: Feb 2003
Location: Castleton Ont.
Posts: 1,028
Default

Hi Frankie
If you go to this: http://www.mapleleafup.net/forums/sh...667#post226667
you will see a photo of a bumper I have with the hooks. I can take more photos if you need.
Cheers,
Barry

http://www.mapleleafup.net/forums/sh...667#post226667
Reply With Quote
  #8
Old 20-10-16, 08:37
Frantisek Nachlinger Frantisek Nachlinger is offline
Registered User

Join Date: Jun 2005
Location: Czech republic
Posts: 225
Default

Thank you all.

Barry: thank you for your offer, but it seems that the Ford ones differ Would be cool to find a complete bumper as your one is!

Last edited by Frantisek Nachlinger; 20-10-16 at 09:30.
Reply With Quote
  #9
Old 20-10-16, 09:12
Niels V's Avatar
Niels V Niels V is offline
Niels Vegger

Join Date: Feb 2008
Location: Copenhagen, Denmark
Posts: 500
Default

Looking through my pictures it seems that the hooks on the bumper are a Cab 13 "thing" and not fitted to Cab 11 or 12. and sadly the Cab 13 FAT I have access to does not have the original bumper
__________________
1941 Chevrolet, Cab 12 CGT, 7A2 body
1944 Ariel W/NG
1944 Scammell Pioneer SV/2S x 2
1955 Austin Champ, 04BF45

1946 Chevrolet 5400 COE, Civilian
Reply With Quote
  #10
Old 25-10-16, 23:41
Frantisek Nachlinger Frantisek Nachlinger is offline
Registered User

Join Date: Jun 2005
Location: Czech republic
Posts: 225
Default

Quote:
Originally Posted by Niels V View Post
Yours looks to have had the smaller type fitted, that uses the same holes as the D rings, though the bumper could have been switched at some point.
..thinking again - if I should have the smaller - elder type of the rollers shouldn't i have the early type of the dashboard? STRESSSSS AGAIN!!!

http://www.mapleleafup.net/forums/sh...ad.php?t=25748

Frankie
Reply With Quote
  #11
Old 27-10-16, 17:19
Tony Wheeler's Avatar
Tony Wheeler Tony Wheeler is offline
Registered User

Join Date: May 2012
Location: Yarra Junction VIC
Posts: 953
Default

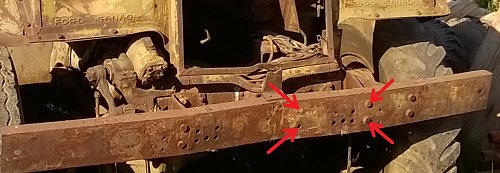

Relax Frankie!! Your vehicle is late production (ie. 1944-45) which includes certain features:

1. FORD CANADA front shell
2. Military dashboard (ie. round gauges)
3. Late type bumper (includes provision for late type front fairleads as shown below)
4. various cab improvements (eg. windscreen demister slots)
5. sling hubs front & rear

Click image for larger version

Name:	my bumper.jpg
Views:	4
Size:	213.3 KB
ID:	86052
__________________
One of the original Australian CMP hunters.

Last edited by Tony Wheeler; 27-10-16 at 17:38.
Reply With Quote
  #12
Old 28-10-16, 08:13
Frantisek Nachlinger Frantisek Nachlinger is offline
Registered User

Join Date: Jun 2005
Location: Czech republic
Posts: 225
Default

Tony,
THANK YOU!
Frankie
Reply With Quote
  #13
Old 29-10-16, 04:52
Tony Wheeler's Avatar
Tony Wheeler Tony Wheeler is offline
Registered User

Join Date: May 2012
Location: Yarra Junction VIC
Posts: 953
Default

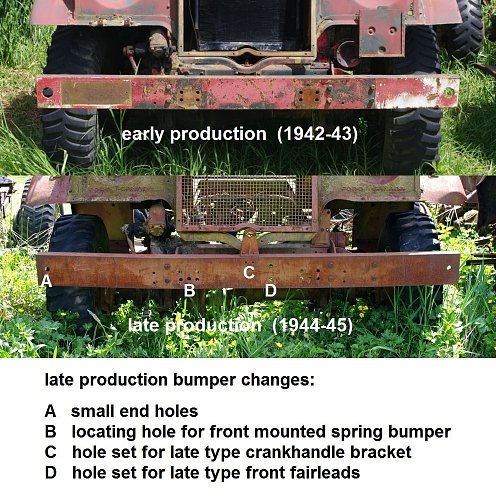

Just to clarify early/late bumper difference:

Click image for larger version

Name:	Cab 13 early-late production bumper.jpg
Views:	7
Size:	235.3 KB
ID:	86110

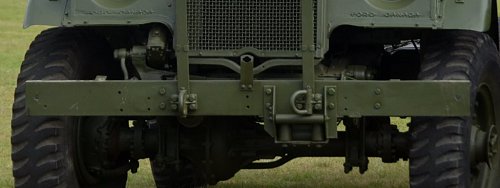

Example showing front mounted spring bumper. These appeared in mid-late '45 production.

Click image for larger version

Name:	6016597235_a84418a03a_o - Copy.jpg
Views:	4
Size:	69.8 KB
ID:	86111

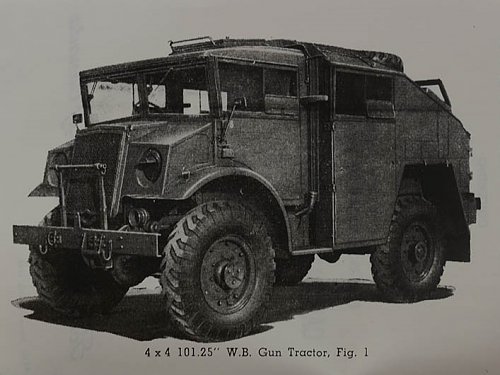

...and here's a late production FAT depicted in drivers handbook showing late type fairleads, rear-mounted spring bumper, scotch hooks fitted. This is how Czech examples would have been configured.

Click image for larger version

Name:	Vehicles.jpg
Views:	8
Size:	102.7 KB
ID:	86112
