Hup interior

[Phil Waterman]

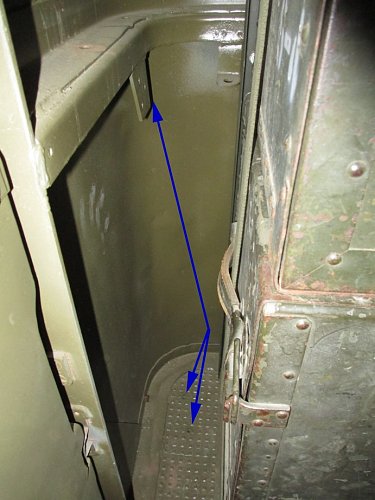

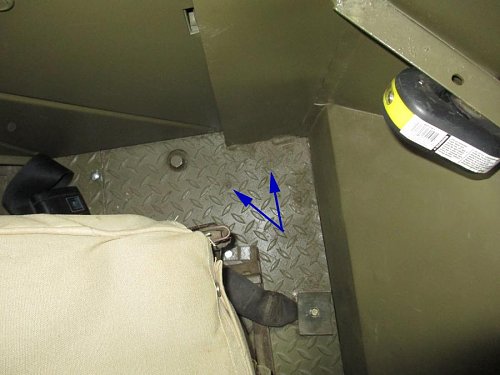

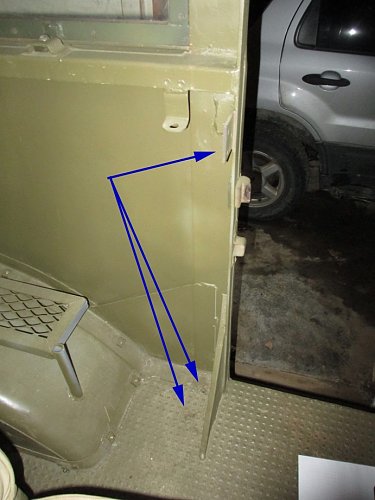

Right Rear Rifle Cup Mounting Holes
1 Right Rear Rifle Clip & But Holder CMP.jpg

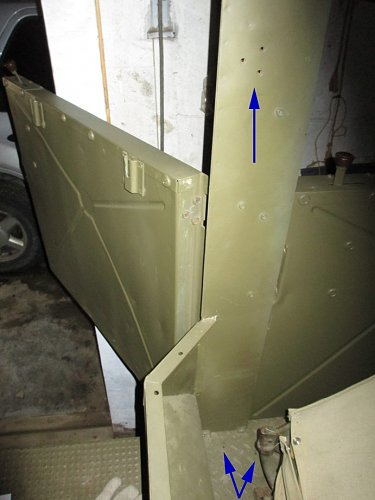

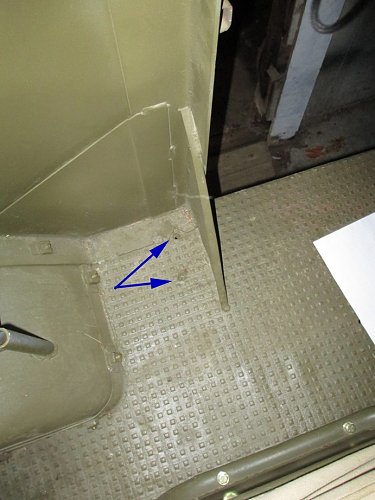

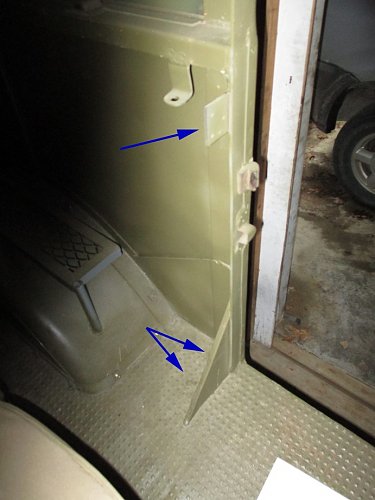

Left Rear Rifle Cup Mounting Holes
1 Left Rear Rifle Clip & But Holder CMP.jpg

Does this provide the information you needed? I can post larger higher resolution versions of these photos if they would help or give you basic dimensions to locate the holes.

Cheers Phil

[Maurice Donckers]

yes, realy thanks for that , it explains everyting .
The wooden blocks in a regular cab are in line with the vehicle , and I noticed on the hup they are under an angle .
building year from this hup must be 43 . no data plate. 2 side doors , rectangular roof hatch , round instruments , hard rubber steering wheel.
again thanks for info .

[Maurice Donckers]

Thanks , brackets aree fitted.
Another question , were are the sidescreens stowed when not in use?

[Brian Gough]

Hi Maurice,

The sidescreens are stowed in the wire mesh bins shown in the picture in post #6 from Phil Waterman.

Cheers,

Brian

[Phil Waterman]

Hi Maurice

Do you need photos of the rack and the mounting points?

Cheers Phil

[Maurice Donckers]

Phil thanks , but one of the side bins is still there , just the bottom piece is missing , but from the pictures in this post I can figure them out .and will copy one for the other side,
By the way the floor is made from checker plate , not the type as in the pictures in this post .
Next bit will be the 1 gallon can holders for under the rear of the body , when these are done the body can go on the finished chassis . Are there drawings available from these holders?I have seen copies in the past in France.
Will take some pictures next week .
The vehicle base collor is Brown , scratched paint away on the front , and there seem to be remains of markings there , will try to save them .

[Phil Waterman]

Hi Maurice

W Rear Holder Box.jpg

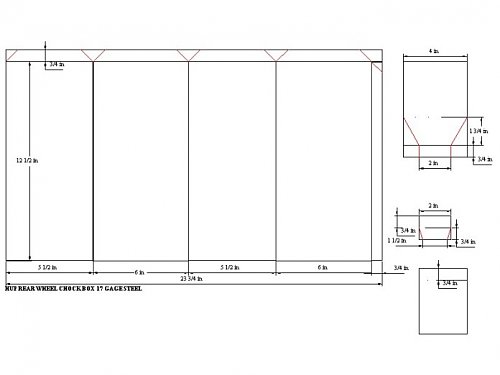

Are these the critters? I replaced the original holder boxes on mine because they had been flattened and straightened out to many times. So I have the originals sitting on the shelf, I think I did CAD drawings of them I'll look. Failing that I'll just measure and photograph mine for you to work from.

Cheers Phil
