#2
07-04-14, 12:36
|
|||
|
|||
Coupling Spacing

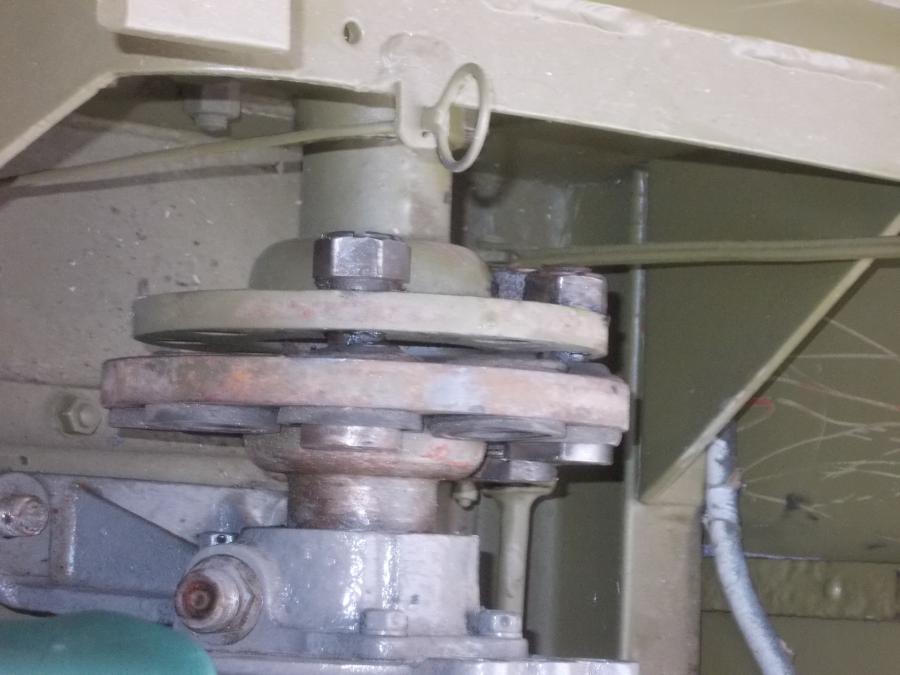

Hi Jim , I think the measurement I try and obtain when I set these up is 8mm,
which I think pretty much works out that the rubber bush is half and half through the steel flange. Make sure the 2 faces are parallel to each other, so the bushes don't flog themselves out too quickly.
__________________
Valentine MkV Covenanter MkIV Lynx MKI and MKII Loyd Carrier / English / Candian / LP. M3 Stuart
|
|
|
