F8 Toolbox/Spare Tire Bracket Measurements
Started my search today for plans for the 8 cwt toolbox(es) and spare tire bracket along with the "floor" suport for the tire (and toolbox?). The only thing I've been able to find that shows a clear picture of all is the attached. However, I haven't been able to find anything that has all the details along with measurements to make them. If anyone out there has any suggestions/sources, I'd be most appreciative!
Regards, Jim
|
|
#2
27-01-09, 05:04
|
||||
|
||||
|
Jim, take a closer look at that CD I sent you. In the C8 body drawings folder are all the dimensions and drawings you'll need.
__________________
1940 Cab 11 C8 Wireless with 1A2 box & 11 set 1940 Cab 11 C8 cab and chassis 1940 Cab 11 C15 with 2A1 & Motley mount & Lewis gun 1940 Cab 11 F15A w/ Chev rear ends 1941 Cab 12 F15A 1942-44 Cab 13 F15A x 5 1942 cab 13 F15A with 2B1 box 1943 cab 13 F15A with 2H1 box 1943 Cab 13 C8A HUP 1944 Cab 13 C15A with 2C1 box 1943 Cletrac M2 High Speed Tractor MkII Bren gun carrier chassis x 2
|
|
#3
28-01-09, 00:28
|
||||
|
||||
|
David,
Tried to find the drawings on the disc last night and suffered some severe disfunction when operating the TV/DVD control wand. Gave up and sent the post. Tried again after your response and remarkably, my mastery of the wand had returned. Found all that I need! Thanks again for the disc! Regards, Jim
|
|
#4
29-01-09, 02:46
|
||||
|
||||
|
toll lockers
Jim
Not sure what drawings you have ..but if they are the drawings from UK . The lower locker floor length as shown on the drawing is about 1" shorter than it should be . I studied the photos as best I could and the two long shaped angle iron pieces the lower locker is made from are different : the inner one ( bolts to the forward main panel of the tub ) is thinner/lighter than the forward one. Mike
__________________
1940 cab 11 C8 1940 Morris-Commercial PU 1941 Morris-Commercial CS8 1940 Chev. 15cwt GS Van ( Aust.) 1942-45 Jeep salad
|
|
#5
29-01-09, 02:54
|
||||
|
||||
|
Tool Lockers
Mike,
I have a DVD from David Pope which has the drawings of the tool locker/spare tire holder on it. The problem I have is that I can only view it on my TV and cannot print out the drawings. If you have a set, I'd certainly appreciate having a copy! Regards, Jim
|
|
#6
29-01-09, 23:37
|
||||
|
||||
|
Ok
OK . I'll try to find em and post them here . you can do save and then print em . One thing , the shaped foot that the spare wheel sits on isn't in the drawings from memory . Ian cut out a template and I used that to make one.
The upper locker end piece is somewhat tricky to make , it's a flat/angled panel with 'U' shaped edges to fit into the locker sides. I had 3 attempts at it til I got it correct. I hand made the spare wheel latch . Mike
__________________
1940 cab 11 C8 1940 Morris-Commercial PU 1941 Morris-Commercial CS8 1940 Chev. 15cwt GS Van ( Aust.) 1942-45 Jeep salad
|
|
#7
29-01-09, 23:56
|
||||
|
||||
|
Here's those UK drawings of the tool box and tire retainer.
__________________
1940 Cab 11 C8 Wireless with 1A2 box & 11 set 1940 Cab 11 C8 cab and chassis 1940 Cab 11 C15 with 2A1 & Motley mount & Lewis gun 1940 Cab 11 F15A w/ Chev rear ends 1941 Cab 12 F15A 1942-44 Cab 13 F15A x 5 1942 cab 13 F15A with 2B1 box 1943 cab 13 F15A with 2H1 box 1943 Cab 13 C8A HUP 1944 Cab 13 C15A with 2C1 box 1943 Cletrac M2 High Speed Tractor MkII Bren gun carrier chassis x 2
|
|
#8
30-01-09, 00:05
|
||||
|
||||
|
Here's the tire holder
__________________
1940 Cab 11 C8 Wireless with 1A2 box & 11 set 1940 Cab 11 C8 cab and chassis 1940 Cab 11 C15 with 2A1 & Motley mount & Lewis gun 1940 Cab 11 F15A w/ Chev rear ends 1941 Cab 12 F15A 1942-44 Cab 13 F15A x 5 1942 cab 13 F15A with 2B1 box 1943 cab 13 F15A with 2H1 box 1943 Cab 13 C8A HUP 1944 Cab 13 C15A with 2C1 box 1943 Cletrac M2 High Speed Tractor MkII Bren gun carrier chassis x 2
|
|
#9
30-01-09, 00:09
|
||||
|
||||
|
The last of them.
__________________
1940 Cab 11 C8 Wireless with 1A2 box & 11 set 1940 Cab 11 C8 cab and chassis 1940 Cab 11 C15 with 2A1 & Motley mount & Lewis gun 1940 Cab 11 F15A w/ Chev rear ends 1941 Cab 12 F15A 1942-44 Cab 13 F15A x 5 1942 cab 13 F15A with 2B1 box 1943 cab 13 F15A with 2H1 box 1943 Cab 13 C8A HUP 1944 Cab 13 C15A with 2C1 box 1943 Cletrac M2 High Speed Tractor MkII Bren gun carrier chassis x 2
|
|
#10
30-01-09, 00:45
|
||||
|
||||
|
more
David beat me to it .
you'll see the 33.5" measurement on the first drawing ..it actually should be 34.5 " ----> on the original setup, the whole floor , including the angled up end section is made from one piece of sheet..this is difficult to replicate , so I welded it on as a seperate piece ( i should say my welding teacher did it with a TIG ) , i ground the join down and its hardly noticeable.
__________________
1940 cab 11 C8 1940 Morris-Commercial PU 1941 Morris-Commercial CS8 1940 Chev. 15cwt GS Van ( Aust.) 1942-45 Jeep salad
|
|
#13
09-02-09, 21:33
|
||||
|
||||
|
Upper Tool Box Door and Rear Measurements
David,
The first set of drawings you sent does not include one for the door to the upper tool box. As such I don't know what the hasp looks like. Also, the measurements for the sloped bottom portion of the back panel where the spare tire rests are not given. If the sectional drawing is to scale the portion removed would be 4" each, back and bottom. A second question regarding ther bottom tool box: Do both the top and bottom doors' flanges go on the outside of the box or the inside? The drawing of the bottom sloped panel shows it to be 12 1/4" wide while the drawing of the door shows it to be 13 3/4" wide. Something doesn't compute. Regards, Jim
|
|
#14
17-02-09, 07:55
|
||||
|
||||
|
Quote:
And 13 and 3/4" sounds correct
__________________
1940 cab 11 C8 1940 Morris-Commercial PU 1941 Morris-Commercial CS8 1940 Chev. 15cwt GS Van ( Aust.) 1942-45 Jeep salad
|
|
#15
17-02-09, 22:04
|
||||
|
||||
|
Mike,
My bad! Figured out that the cover goes on the outside of the box which includes the angle iron frame that goes around the inside edge of the back of the bed. On another subject, my son upgraded my computer and I was able to read David's DVD on it. I could not find any dreawings w/measurements of the top cover/lid. Also, there are not any drawings of the spare tire bracket/rest that is attached to the back of the top tool box. If anyone has anything on these I'd certainly appreciate it! Regards, Jim
|
|
#16
30-06-20, 21:22
|
||||
|
||||
|
C8 body drawings
Quote:
Could anybody share his C8 body drawings on here? I have been asked by a couple of people quite recently. I'm sure David would have liked to see new guys showing an interest in refabricating these 8-cwt bodies.
__________________
Regards, Hanno --------------------------
|
|
#17
01-07-20, 14:12
|
||||
|
||||
|
drawings
Quote:
__________________
1940 cab 11 C8 1940 Morris-Commercial PU 1941 Morris-Commercial CS8 1940 Chev. 15cwt GS Van ( Aust.) 1942-45 Jeep salad
|
|
#18
02-07-20, 12:42
|
||||
|
||||
|
Ian Richardson's body drawings
Quote:
It begs the question: does anybody have Ian's drawings and can he share them on here, please?
__________________
Regards, Hanno --------------------------
|
|
#19
02-07-20, 12:44
|
||||
|
||||
|
Body 1A2 for Truck 8-cwt Wireless
See the links for some excellent pictures of the 8-cwt truck and body.
CMP Truck 8-cwt Wireless: http://www.rcsigs.ca/index.php/CMP_Truck_8-cwt_Wireless Body 1A2 for Truck 8-cwt Wireless: http://www.rcsigs.ca/index.php/Body_...8-cwt_Wireless
__________________
Regards, Hanno --------------------------
|
|
#20
02-07-20, 12:46
|
||||
|
||||
|
DND Body Parts List

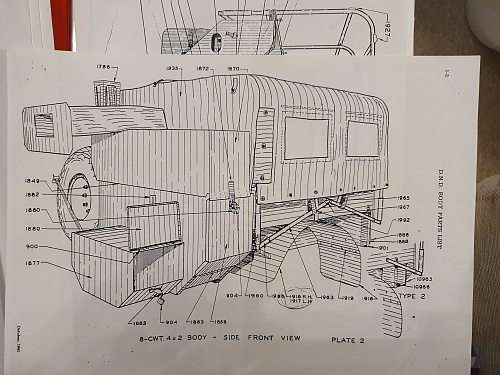

Some more drawings from the DND Body Parts List, courtesy of Colin Reilly:
__________________
Regards, Hanno --------------------------
|
|
#21
02-07-20, 14:03
|
||||
|
||||
|
Drawings
I have the drawings stored away, I did scan most of them and passed the scans onto D Pope . The drawings in this thread are Ian's
__________________
