#1
04-10-15, 09:21
|
|||
|
|||
NEEDED - Ford V8 Oil Bath Filter bracket.
I am back doing a little on my Ford Lynx Scout Car.

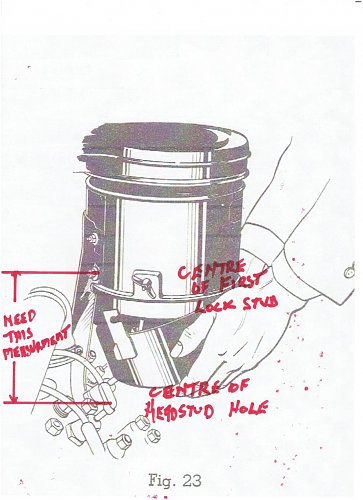

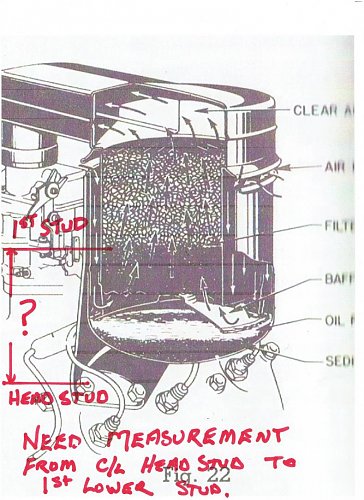

I need either a complete bracket for the oil bath air cleaner or I will make my own if someone can supply the measurements. I have the original oil bath cleaner from the Lynx but it is missing the bracket. Here is the bracket I need which is found on most car engines as well as the Lynx. These measurements are the ones I require if I have to make my own. Thanks Rick.
__________________
1916 Albion A10 1942 White Scoutcar 1940 Chev Staff Car 1940 F30S Cab11 1940 Chev WA LRDG "Te Hai" 1941 F60L Cab12 1943 Ford Lynx 1942 Bren Gun Carrier VR no.2250 Humber FV1601A Saracen Mk1(?) 25pdr. 1940 Weir No.266 25pdr. Australian Short No.185 (?) KVE Member.
|
|
#2
04-10-15, 09:52
|
|||
|
|||
|
PM'd you, Rick
__________________
1967 Land Rover Plant Repair Vehicle 1941 Matchless G3L 194? Wiles Junior Trailer 1941 Morris Commercial CS8
|
|
#3
04-10-15, 09:58
|
|||
|
|||
|
Thanks Alex, PM'd you back.
Rick.
__________________
1916 Albion A10 1942 White Scoutcar 1940 Chev Staff Car 1940 F30S Cab11 1940 Chev WA LRDG "Te Hai" 1941 F60L Cab12 1943 Ford Lynx 1942 Bren Gun Carrier VR no.2250 Humber FV1601A Saracen Mk1(?) 25pdr. 1940 Weir No.266 25pdr. Australian Short No.185 (?) KVE Member.
|
|
#4
04-10-15, 14:47
|
|||
|
|||
|
Bracket
Rick,
Sorry, but this is one area that the Lynx 1 and Lynx 2 do vary significantly. Glad to see that you're back at it. Let me know how you make out. We have a local scrapyard that would warrant a search. Peter
|
|
#5
10-10-15, 00:55
|
|||
|
|||
|

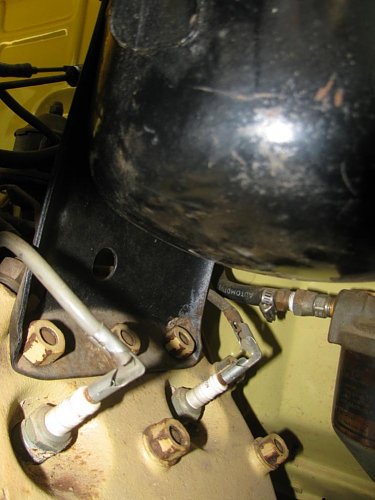

I have an NOS aircleaner that I always thought was Lynx but it has holes for three stud bolts. Your illustration looks like there are only 2 mounting holes. If you still need measurements from a three-hole style send me a PM.
Just checked the height from centre of central stud hole to height of the first lock stud: 6-7/8" The height from the 2 two other stud holes is 6-3/4 and 7" ...... Brian Last edited by BCA; 10-10-15 at 01:06.
|
 |
|
|
