Front wheel cylinder fitting

[M38CDNBill]

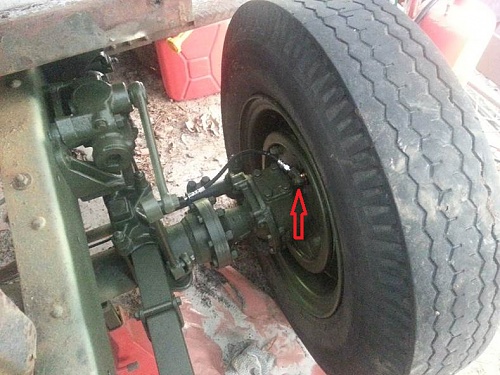

Question for the CMP truck experts, in the following picture, it looks like there's an elbow that screws into the front brake cylinder. Is it true and if so, this elbow is it easy to find?

[rob love]

I believe that is a banjo fitting. They are a somewhat standard item in the old days...I think the older weatherhead catalogues listed them. My old catalogues are at work....I'll try and remember to look them up tomorrow.

[Jordan Baker]

Try Macs Antique parts.

[M38CDNBill]

Originally Posted by rob love

I believe that is a banjo fitting. They are a somewhat standard item in the old days...I think the older weatherhead catalogues listed them. My old catalogues are at work....I'll try and remember to look them up tomorrow.

Thanks Rob.

[Grant Bowker]

There are two versions of the junction block. One is typically used on the CMP rear axle and is flat. This version is readily available (including at Mac's). The other version has a bend in it and is typically on the front axle of CMP. I believe the bend is for added clearance between the brake hose and the tire as the truck is steered. The bent version is not as easy to find as the flat one. I will try to find photos of both.

[Hanno Spoelstra]

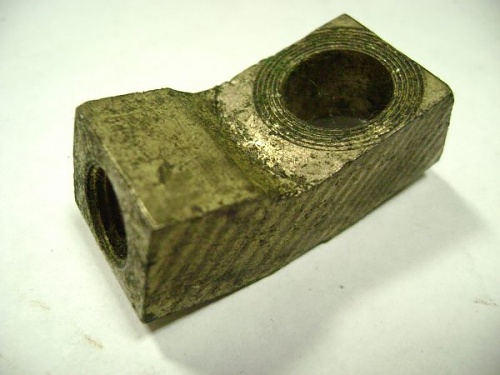

I think you mean this one:



Connection, brake
CMP Ford C01Q – 2080
CMP CHEV GM – 5805658

Source: https://www.lwdparts.com/product/connection-brake/

HTH,
Hanno

[Grant Bowker]

Thank you Hanno.
The rear block can be found at https://www.macsautoparts.com/early_..._Brake+Systems and is probably still a stock item at parts suppliers under the Ford number 91T-2277.
